Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall
Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall
Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall
Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall
Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall
Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
XY-50
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
10000 sets
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
380000sets per 30 days
Delivery Time :
7 work days
Packaging Details :
cartons+ pallet
Product name :
Galvanized Steel Insulation Pins
Function :
Fixing Acoustic Panels
Pin length :
15mm-280mm
Head Size :
2"*2" or custom
Finished :
zinc plating
Pin size :
12GA or 14GA or customized
Description

Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall

Materials Low Carbon Steel - PIN / Plate
Mechanical Properties Low Carbon Steel - Plate
Also available by special order in all Stainless Steel or all Aluminum
Plating Pin - Galvanized coating is standard.
Plate - Galvanized is standard.
Washers Self-locking washers are available in a variety of sizes, shapes, and materials.
Size - D 12 GA (0.105") is standard.
Other sizes available by special order only.
Length - L 1", 1-5/8", 2", 2-1/2", 3-1/2", 4-1/2", 5-1/2". 6-1/2", 8" and 9" are standard.
Other lengths available by special order.

Most important technical points as follows:

1. why must choose anneaded metal wire?

soft wire is easily for bending when fixing rock wool materials with self locking washer.

2. why we choose 2.7mm or 3mm wire to make the nails?

2.7mm and 3mm thickness wire is standard size for insulation pins. at same time, the pin length is decide the pin diameter.

3. why we choose hardness metal sheet for making the square base?

hardness metal sheet is more firmly , no-shedding, nondeformable.

Specifications of Galvanized Steel Glass Wool Insulation Pins

tape base base thickness pin diameter pin length material
50x50mm 0.4mm 12ga/3mm 38mm-230mm mild steel / stainless steel
40x40mm 0.4mm 2.5mm/2.7mm 15mm-120mm mild steel / stainless steel
35x35mm 0.4mm 2mm, 2.2mm 15mm-65mm mild steel / stainless steel
accept custom accept custom accept custom mild steel / stainless steel

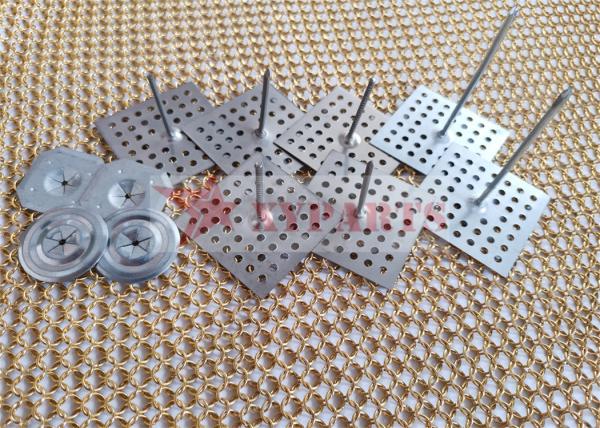

Images of Galvanized Steel Glass Wool Insulation Pins

Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall

Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall

Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall

Package details of Galvanized Steel Glass Wool Insulation Pins

Product size Quantity Box size Weight
38mm galvanized steel insulation pins 500Pcs 35×35×20CM 4.55KG
50mm galvanized steel insulation pins 500Pcs 35×35×24CM 4.7KG
63mm galvanized steel insulation pins 500Pcs 35×35×26CM 5.00G
89mm galvanized steel insulation pins 500Pcs 35×35×30CM 6.15KG
114mm galvanized steel insulation pins 500Pcs 35×35×35CM 6.50KG
203mm galvanized steel insulation pins 250Pcs 35×35×35CM 3.85KG

Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall

Stainless Steel Insulation Fixing Glass Wool Insulation Pins For External Wall

Q: Are you a factory or trading company?

A: We are the specialized supplier of insulation pins fastener, can provide the best price.

Q: Where is your factory?

A: Our factory is located in RAOYANG city HEBEI province.

Q: How can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q:Can you make OEM or ODM service?

A: Yes. We can accept OEM service.

Q:How to ensure that every process's quality?

A: Every process will be checked by our quality inspection department which insures every product's quality.

Q: Can you provide some sample before placing orders?

A: Samples are free,Please feel free to contact us.

Q: What is your payment term?

A: T/T,Western Union,L/C,and Paypal.This is negotiable.

Q:What is the shipping method?

A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX etc).Please confirm with us before placing orders.

Q:What is your lead time?

A: It depends on the order quantity and the season you place the order.Usually we can ship within 3-7 days for small quantity,and about 20-30 days for large quantity.
