M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
XY-PBMP
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 pcs
Payment Terms :
L/C, T/T,
Supply Ability :
100000 pcs per week
Delivery Time :
Within 12days after payment
Packaging Details :
500 PCS per carton
Name :
Marine Insulation Pins
Material :
Mild steel
Techinical :
Stamped
Base :
Perfoated disc base
Base dia :
40mm
pin diameter :
3mm
Pin length :
30mm-100mm
finished :
zinc coated, copper coated
Description

M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base

Introductions of the Marine insulation fixing pins

  • Name: Marine insulation fixing pins , also named perfoated disc base pins ,
  • Mateiral: Mild steel
  • Base type: Perforated disc
  • Base size :40mm
  • Thickness :0.7mm
  • Pin diameter:3.0mm
  • Pin length :30-100mm
  • Surface treatment: Zinc coated, copper plated
Name Marine insulation fixing pins
Material Surface treatment Base size Pin diameter Pin length
Mild steel Galvanized , copper plated 0.7mm T*40mm perfoated 2.7mm,3.0mm 30mm
Mild steel Galvanized , copper plated 0.7mm T*40mm perfoated 2.7mm,3.0mm 50mm
Mild steel Galvanized , copper plated 0.7mm T*40mm perforated 2.7mm,3.0mm 60mm
Mild steel Galvanized , copper plated 0.7mm T*40mm perfoated 2.7mm,3.0mm 75mm
Mild steel Galvanized , copper plated 0.7mm T*40mm perfoated 2.7mm,3.0mm 100mm
Note Both the base size and pins size could be customized according to requireemnts.

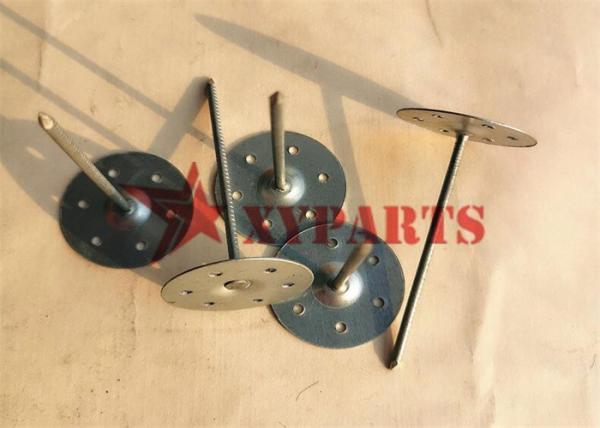

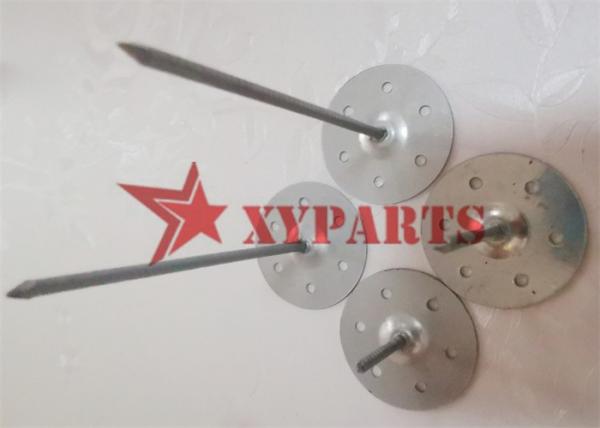

Photos of the Marine insulation fixing pins

M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc BaseM3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc BaseM3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base

Application of Marine insulation fixing pins

The Marine insulation fixing pins is widely used on marine, boat . to fix the external wall.

Put the perforated disc /head of the nails on the boards with glue , waiting for some hours , then press the rock wool/extermal wall onto the nails.

M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base

Packing methods and Delivery methods of the Marine insulation fixing pins

Packing methods:500pcs per carton , then put then carton on the pallets. and also could be packed accordign to the customer's requirements.

Delivery methods: By express (TNT/UPS , DHL) for small order or sample , by Railway/Air/Sea for big order.

Related products from HEBEI XIANGYI

  • Self adhesive insulation pins
  • Insulation hangers
  • Insulation anchors
  • Lacing anchor Lacing ring
  • Cup head weld pins
  • Perforated base pins
  • Quilting pins & Duct liner pins
  • CD weld pins,Bimetal weld pins
  • Self locking washers /Speed clips & dome caps,
  • Insulation Impaling Clips
  • drive pins
  • Plastic insulation anchors

M3*75 Mm Galvanized Marine Insulation Pins With 40mm Dia Perforated Disc Base

HEBEI XIANGYI METAL PRODUCT CO.,LTD

We have our own powder actuated Insulation insulation pin factory .

Our factory was since 2011

We accept OEM or ODM order.

Our company has R&D department and enigeer.

For every important processing link,we all have our own equipment (not outside processing) to keep quality.

We have many years of experience in OEM for well-known brands.
