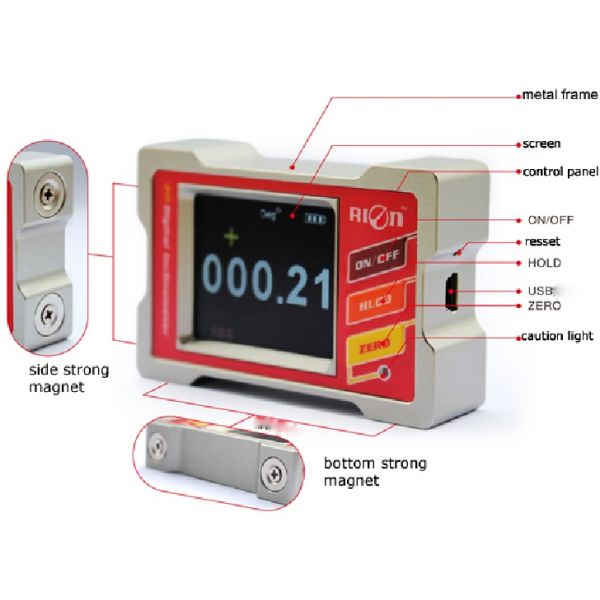

IP54 2 Axis Machine Tool Level Measurement Sensor
IP54 2 Axis Machine Tool Level Measurement Sensor
Specifications
Brand Name :
RION
Model Number :
DMI420-90
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$248.00/Sets
Payment Terms :
T/T, Paypal
Supply Ability :
30000 Set/Sets per Month
Delivery Time :
5-10 work days
Packaging Details :
1pcs/box,10pcs/ctn
Name :
machine tool level sensor
Measure axis :
2 axes
Angle measure accuracy :
0.05 °（full range）
Waterproof :
IP54
Angle measure resolution :
0.01°
Power supply :
3.7v rechargeable lithium battery
Shock impact :
10grms,10-100Hz
Weight :
≤140g
Description

Machine tool level measure sensor clinometers measure level for platform

Specifications

PARAMETERS DMI410 DMI420
Angle measure range ±180 ° ±90 °
Length measure range 0~±999.9mm/m 0~±999.9mm/m
Measure axis Single axis Dual axis
Angle measure accuracy 0.05 °(full range) 0.05 °(full range)
Angle measure resolution 0.01° 0.01°
Length measure accuracy 0.9mm/m(full range) 0.17mm/m(full range)
Length measure resolution 0.17mm/m 0.1mm/m
LCD visible area size L40*W32mm
Working temperature -10℃～ +70℃
Working humidity 85℃
Power supply 3.7V Charging Lithium battery
Ideal charging time 3h
Battery continuous working time 8h(±0.5)
Data output signal Standard 5Pin USB connector
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance 10grms,10～100Hz
Weight ≤140g
Waterproof level IP54
Material Metal aluminum
Size L83*W53*H19.2mm

▶ APPLICATION

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Cloud deck angle detection

★ Production jig

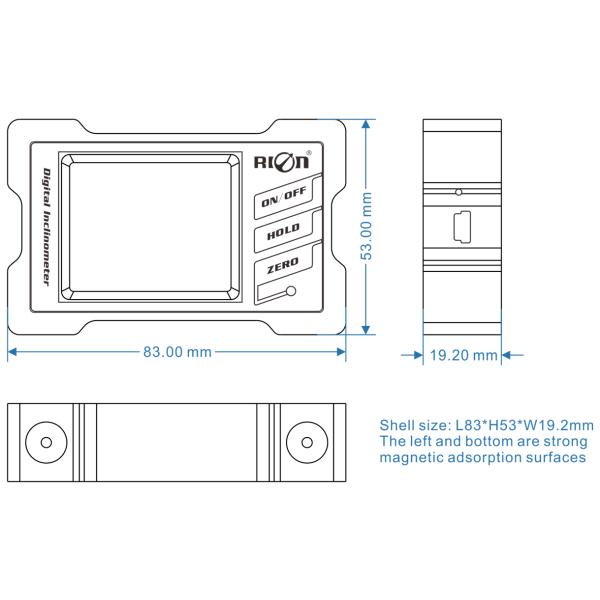

▶ DIMENSION

IP54 2 Axis Machine Tool Level Measurement Sensor

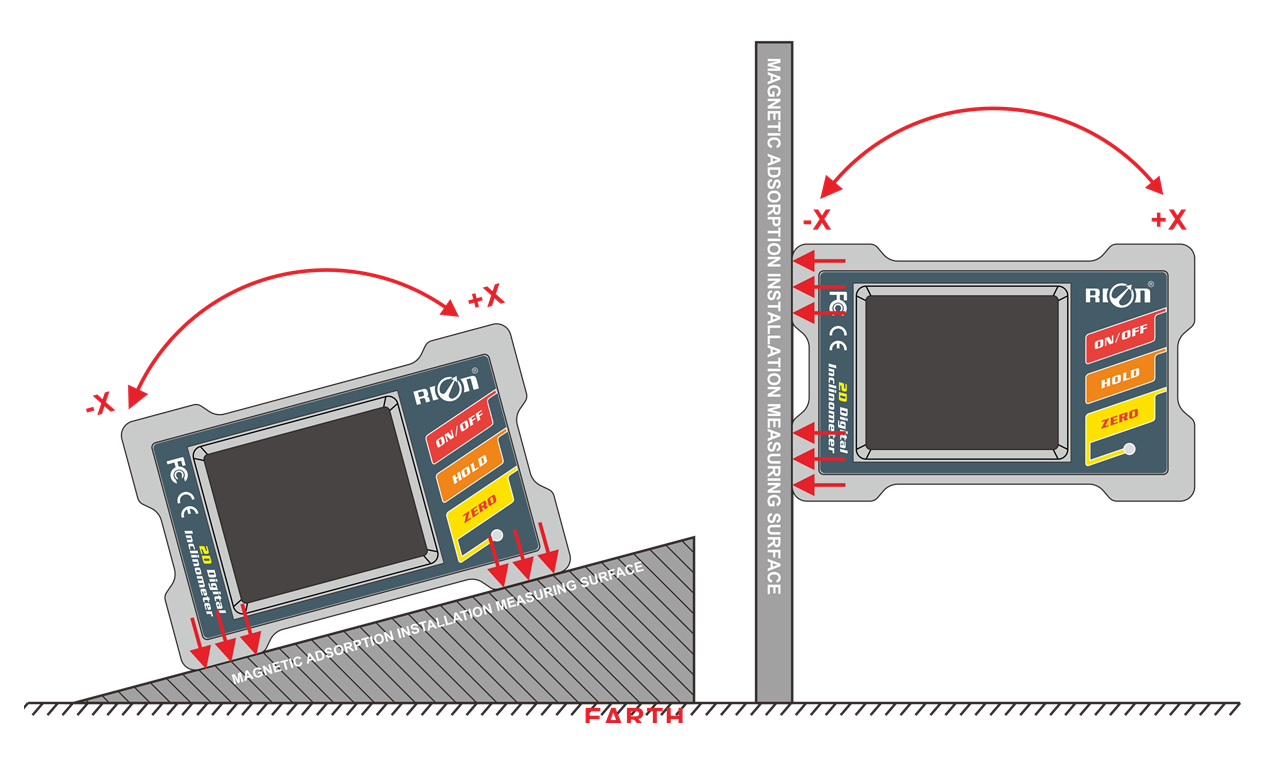

▶ MEASURING DIRECTION

IP54 2 Axis Machine Tool Level Measurement Sensor
