DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation
DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation
DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation
DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation
DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation
DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation
Specifications
Brand Name :
RION
Model Number :
DDM360-485
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$99.00 - $115.00/Pieces
Payment Terms :
T/T, L/C
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
5-10 work days
Packaging Details :
1pcs / inner box with sponge , 100pcs/ctn
name :
yaw sensor
Output :
RS232/RS485/TTL
dynamic compass Heading accuracy :
0.8deg
Resolution :
0.1°
Inclination accuracy :
Dynamic 0.5°
Size :
L55*W37*H24mm
Power supply :
DC 9~36v
Protection class :
IP67
Description

DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation

DDM350B/360B Parameter
Compass heading Heading accuracy 0.8°
Resolution 0.1°
Pitch range ±90°
Roll range ±180°
Inclination accuracy Static state 0.2°
Dynamic 0.5°
Resolution 0.1°
Tilt compensation angle range Roll ±180°
Pitch ＜85°
Calibration Hard iron calibration yes
Soft iron calibration yes
Magnetic field interference calibration method One rotation of the plane (two-dimensional calibration)
Physical feature Size Shell size:L55×W37×H24mm
PCBA size: L33×W27×H9mm

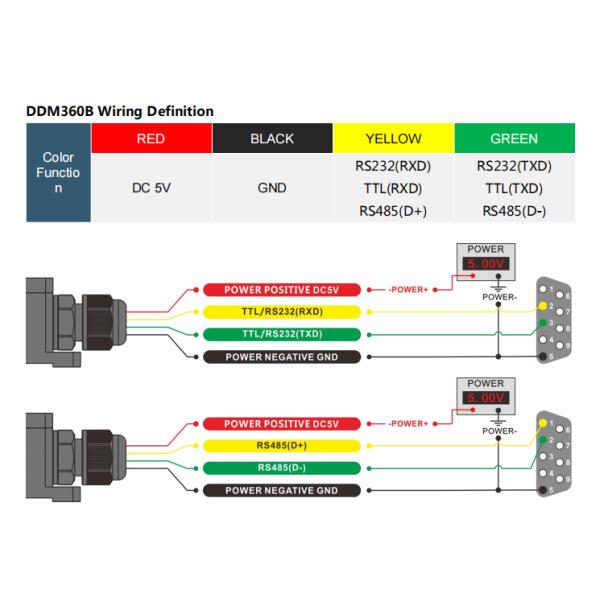

RS232/RS485/TTL

Interface connection line

 Shell : 4PIN 1m direct lead
Single-board : 4 PIN 30cm terminal wire
Interface Startup delay <50ms
Output rate 5~100Hz(settable)
Baud rate 4800到115200baud
Output format Binary high performance protocol
Power Supply voltage (Default) DC +5V
(Customized) DC 9～36V
Current (MAX) 45mA
Ideal model 35mA
Sleep mode TBD
Environment Operating range -40℃～+85℃
Storage temperature -40℃～+85℃
Vibration resistance 2500g
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/time
Insulation resistance ≥100 megohm
Impact resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Weight Single board: ≤25g Enclosure: ≤135g (including 1 meter cable)

▶ MAIN FEATURES

★ Inclination angle measurement range: pitch ±85°, roll angle +/-180°

★ With hard magnetic, soft magnetic and tilt angle compensation

★ Standard RS232/RS485/TTL output interface

★ Azimuth angle accuracy: 0.8°

★ Inclination resolution: 0.1°

★ Inclination accuracy: 0.2°

★ Wide temp. range: -40℃～+85℃

★ Dimesion: L55×W37×H24mm

★ DC 5V power supply

★ IP67 waterproof rating

DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation

DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation

Software Configure :

DDM360 IP67 Dynamic Magnometer Sensor / Yaw Angle Sensor For Ship Navigation
