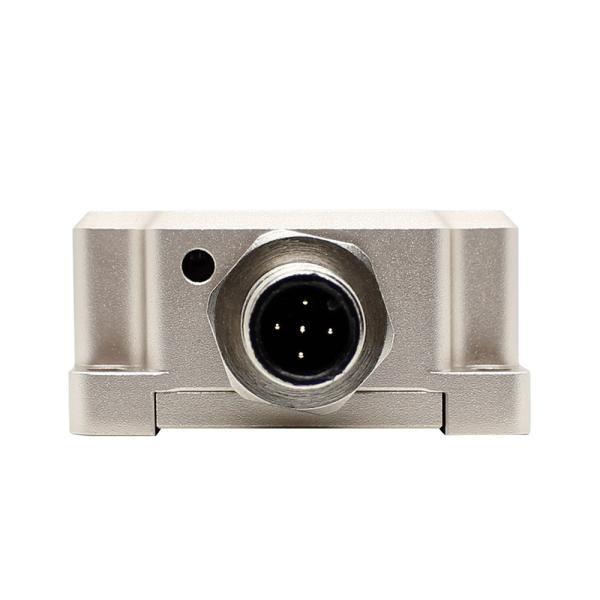

RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure
RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure
RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure
RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure
RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure
RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure
Specifications
Brand Name :
Rion
Model Number :
HDA436T-485-S
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$273.00/Pieces 1-9 Pieces
Payment Terms :
T/T, PayPal
Supply Ability :
5000/month
Delivery Time :
7
Packaging Details :
box
Output :
RS232/RS485/TTL/CAN/4~20mA/0~5V
Power supply :
9~36v
accuracy :
0.05deg
resolution :
0.01deg
water proof :
IP67
dynamic accuracy :
0.1deg
Description

RS232/RS485/TTL/CAN/4~20mA/0~5V Output Incline Meter, Buidling Incline Measure Tilt Sensor, Crane Pitch Angle Measure​


▶ KEY FEATURES

★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)

★ Dynamic accuracy: ± 0.1°

★ DC 9~6V wide voltage input

★ Wide temperature operation -40~+ 85℃

★ Resolution 0.01°

★ IP67 protection level

★ High anti-vibration performance>2000g

★ Size: L72×W47×H22.5mm

▶ PRODUCT APPLICATION

★ Railway locomotive monitoring

★ Oil drilling equipment

★ Shield pipe jacking application

★ Geological equipment tilt monitoring

★ Underground drilling rig attitude navigation

★ Ship navigation attitude measurement

★ Shield pipe jacking application

★ Satellite communication vehicle attitude detection

★ Orientation measurement based on inclination angle

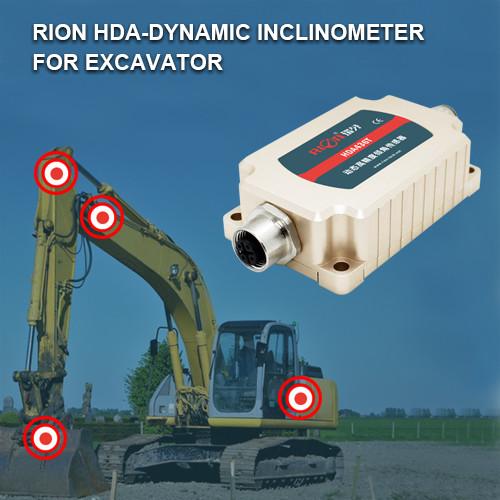

★ Various engineering machinery inclination measurement

▶ PRODUCT DESCRIPTION

HDA436T,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.

HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Carman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / RS232 / TTL are optional, and the scalability is strong.

This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces.

Technical Data

HDA436T CONDITION INDEX
Measure range -

Roll ±180°, pitch ±90°, azimuth ±180°

(initial value at power-down is 0°)
Measure axis - X axis / Y axis / Z axis
Resolution - 0.01°
Static accuracy @25℃ ± 0.05°
Dynamic accuracy(RMS) @25℃ ± 0.1°
Gyro range - ±250°/s
Zero bias stability (10s mean) - 8.5°/h
Zero Bias Instability(allan) - 4.5°/h
Angle random walk coefficient(allan) - 0.25°/sqrt(h)
Acceleration range - ±8g
Bias stability(10s mean) - 0.02mg
Bias instability(allan) - 0.005mg
Speed random walk coefficient(allan) - 0.005m/s/sqrt(h)
Zero point temp. coefficient -40～85℃ ±0.01°/℃
Sensitivity temp. coefficient -40～85℃ ≤100ppm/℃
Power-on startup time 1S
Response time 0.01S
Output signal RS485/RS232/TTL
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 98000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms,10～1000Hz
Waterproof level IP67
Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight ≤165g (excluding cables)

DIMENSION

RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure

INSTALLATION METHOD

RS232 / RS485 / TTL / CAN 4-20mA 0-5V Incline Meter For Crane Buidling Measure
