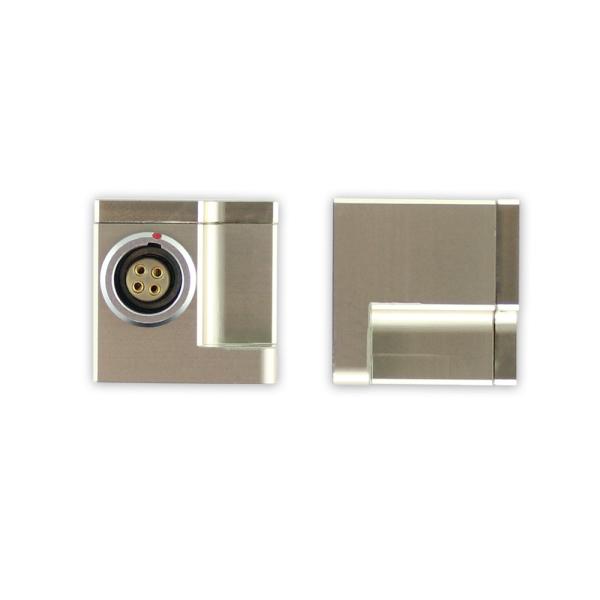

HCM505B Tilt Compensated 3D Digital Compass 40C Magnetic Sensor Roll Angle
HCM505B Tilt Compensated 3D Digital Compass 40C Magnetic Sensor Roll Angle
HCM505B Tilt Compensated 3D Digital Compass 40C Magnetic Sensor Roll Angle
HCM505B Tilt Compensated 3D Digital Compass 40C Magnetic Sensor Roll Angle
HCM505B Tilt Compensated 3D Digital Compass 40C Magnetic Sensor Roll Angle
HCM505B Tilt Compensated 3D Digital Compass 40C Magnetic Sensor Roll Angle
Specifications
Model Number :
HCM505B
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
1pcs in a box with sponge inside , 50pcs/ctn
Price :
438 USD/Pieces
Certification :
CE ISO
MOQ :
1
Payment Terms :
T/T, Paypal
Supply Ability :
5000/month
Delivery Time :
7 days for samples
Usage :
Magnetic Sensor
Theory :
Capacitance Sensor
Heading accuracy :
0.3-0.5
Roll angle range :
+/-180deg
Small size :
L113 X W20 X H20mm
Output interface :
RS232/RS485/TT: (optional)
Description

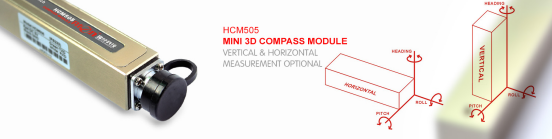

HCM505B Tilt Compensated 3D Digital Compass 40C Magnetic Sensor Roll Angle

Features:

  • Heading accuracy: 0.3°~0.5°
  • Roll angle measuring range :±180°
  • Tilt angle resolution: 0.1°
  • Tilt angle accuracy: 0.2°
  • Size: L113×W20×H20mm
  • Standard RS232/RS485/TTL output interface
  • Wide temperature : -40°C~+85°C

Applications:

  • Satellite antenna search satellite
  • Marine navigation surveying and mapping
  • GPS integrated navigation
  • Antenna servo control
  • Infrared imager
  • Laser range finder
  • Map for plotter
  • ROV underwater robot navigation
  • Oceanography measurement instruments

Technical data

HCM500B/505B
Compass heading parameter The best heading accuracy 0.3° tilt <10°
1.0° tilt <180°
Resolution 0.1°
Compass tilt parameter Pitch accuracy 0.1°<15°(Measure range)
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<85°(Measure range)
Pitch tilt range ±85°
Roll accuracy 0.1°<15°(Measure range)
0.1°<30°(Measure range)
0.1°<60°(Measure range)
0.2°<180°(Measuring range)
Roll tilt range ±180°
Resolution 0.1°
Calibration Hard iron calibration Yes
Soft iron calibration Yes
Magnetic field interference calibration method 24 points(3D calibration)
Physical features Dimension L113×W20×H20mm
Weight 80g(without cable)
RS232/RS485/TTL interface connector 5PIN connector

Interface features

 Start delay <50MS
Maximum output rate 20Hz/s
Communication rate 2400 to19200baud
Output format Binary high performance protocol
Power Power supply (Default)DC+5V
(Customized)DC9～36V
Current(Maximum) 20mA
Ideal mode 18mA
Sleep Mode TBD
Enviroment Operating range -40℃～+85℃
Storage temperature -40℃～+85℃
Resistance shock performance 2500g
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥40000 hours/times
Insulation resistance ≥100M
Shock resistance 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
