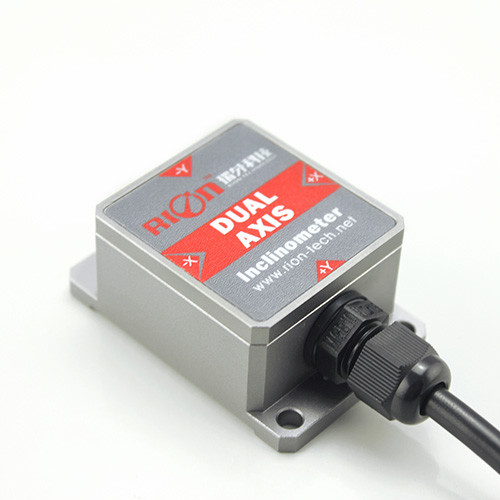

IP67 DC 5V High Precision Inclinometer Digital Output Dual Axis

LCA316T / LCA326T series products are a new generation of digital small volume MEMS tilt sensor launched by RION Technology. It has a built-in dual-channel earth gravity tilt unit, which can be converted into tilt angle changes by measuring static gravity acceleration. So that the tilt angle of the sensor output relative to the horizontal plane can be measured. Output method RS232, RS485 or TTL. Because it is a built-in MCU control system, which correct the linearity of the sensor output twice, making up the accuracy drop for the analog type because of insufficient correction.

This product adopts non-contact measurement of the original quantity, which can output the current attitude and inclination in real time. It is simple to use.

It is an ideal choice for measuring posture of industrial automation console. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments. This product is mainly suitable for static and slow changing dynamic measurement, but not for fast changing dynamic measurement.

Features:

Single / dual axis inclination measurement

Resolution 0.02 °

Range ± 10 ～ ± 90 ° optional

Standard DC 5V power supply

Wide temp. operation -40 ～ + 85 ℃

IP67 protection level

Output mode RS232 / RS485 / TTL

Small size 55 × 37 × 24mm (customizable)

High anti-vibration performance> 3500g

Application:

Electric blind chair leveling

PTZ operation monitorin

Satellite antenna positioning

Medical equipment leveling

Car chassis measureme ,

Four-wheel positioning system

Various engineering machinery angle control

Parameter

INSTALLATION PRECAUTIONS

Please install the tilt sensor according to the correct method. Improper installation will cause measurement error. Pay attention to the first "surface" and the second "line": 1) The mounting surface of the sensor and the measured surface must be tight, flat and stable. The unevenness of the mounting surface is easy to cause the angle error of the sensor measurement.

2) The axis of the sensor and the axis to be measured must be parallel, and the angle between the two axes should be avoided as much as possible.
