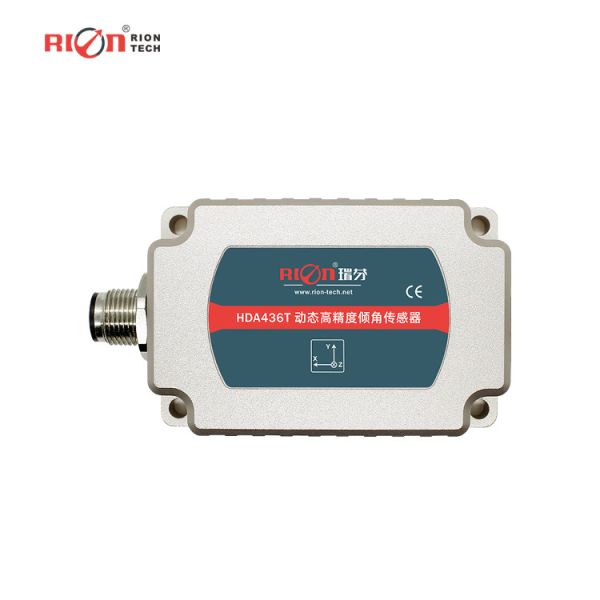

Horizontal Dynamic 2 Axis Inclinometer IP67
Horizontal Dynamic 2 Axis Inclinometer IP67
Horizontal Dynamic 2 Axis Inclinometer IP67
Horizontal Dynamic 2 Axis Inclinometer IP67
Horizontal Dynamic 2 Axis Inclinometer IP67
Horizontal Dynamic 2 Axis Inclinometer IP67
Specifications
Model Number :
HDA536T
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
cartons
Price :
$161.00/Pieces
Certification :
CE, ISO
MOQ :
1
Payment Terms :
T/T, Paypal
Supply Ability :
5000/month
Delivery Time :
7 days for samples
Theory :
MEMS
Brand :
dual axis inclinometer
Voltage - Supply :
DC9-3V
Output Type :
RS232,RS485,RS422,TTL,CAN 2.0 are optional
Operating Temperature :
-40C° ~ +85C °
Mounting Type :
horizontal /vertical
Resolution (Bits) :
0.01
Size / Dimension :
L72*47* H22.5mm
Technology :
MEMS
Dynamic inclinometer wide voltage input :
DC9~36V
High Resolution :
0.01°
Zero temperature coefficient :
±0.01 °/℃
Sensitivity temperature coefficient :
≤100ppm/℃
Power on time :
1s
static accuracy :
± 0.05°
dynamic accuracy :
± 0.3°
Description

Horizontal Dynamic 2 Axis Inclinometer IP67

HDA536T HIGH-PRECISION DYNAMIC TILT SENSOR.pdf

HDA536T-CANBUS HIGH-PRECISION DYNAMIC TILT SENSOR...

▶ MAIN FEATURES

★ Range (Roll angle ±180 °, pitch angle ±90 °, azimuth angle ±180 °)

★ Dynamic accuracy: ±0.1°

★ DC 9～36V wide voltage input

★ Wide temperature operation -40～+ 85 ℃

★ Resolution 0.01 °

★ IP67 protection level

★ Size: L72×W47×H22.5mm

★ High anti-vibration performance> 2000g

▶ APPLICATION FIELD

★ Railway locomotive monitoring

★ Oil drilling equipment

★ Shield pipe jacking application

★ Geological equipment tilt monitoring

★ Underground drilling rig attitude navigation

★ Ship navigation attitude measurement

★ Satellite communication vehicle attitude detection

★ Shield pipe jacking application

★ Orientation measurement based on inclination angle

★ Various engineering machinery inclination measurement

▶ SPECIFICATIONS

HDA536T Condition Parameter
Measure range - Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
Measure axis - X axis / Y axis / Z axis
Resolution1) - 0.01°
Static accuracy2) @25℃ ±0.05°
Dynamic accuracy(rms) @25℃ ±0.1°
Gyro range - ±300°/s
Zero bias stability(10s mean) - 7.5°/h
Zero Bias Instability(allan) - 3°/h
Angle random walk coefficient(allan) - 0.1°/sqrt(h)
Acceleration range - ±6g
Bias stability(10s mean) - 0.1mg
Bias instability(allan) - 0.02mg
Speed random walk coefficient(allan) - 0.01m/s/sqrt(h)
Zero point temp. coefficient3) -40～85℃ ±0.01°/℃
Sensitivity temp. coefficient4) -40～85℃ ≤100ppm/℃
Power-on startup time ≤3.5S
Response time 0.01S
Output signal RS485/RS232/TTL Optional
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 98000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms / 3 axial direction (half sinusoid)
Anti-vibration 10grms / 10~1000Hz
Waterproof level Standard IP67, optional IP68 and corrosion-resistant IP68 protection level
Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight

Single connector ≤165g /

double connector ≤180g (Without cable)

Horizontal Dynamic 2 Axis Inclinometer IP67
Horizontal Dynamic 2 Axis Inclinometer IP67
Horizontal Dynamic 2 Axis Inclinometer IP67
