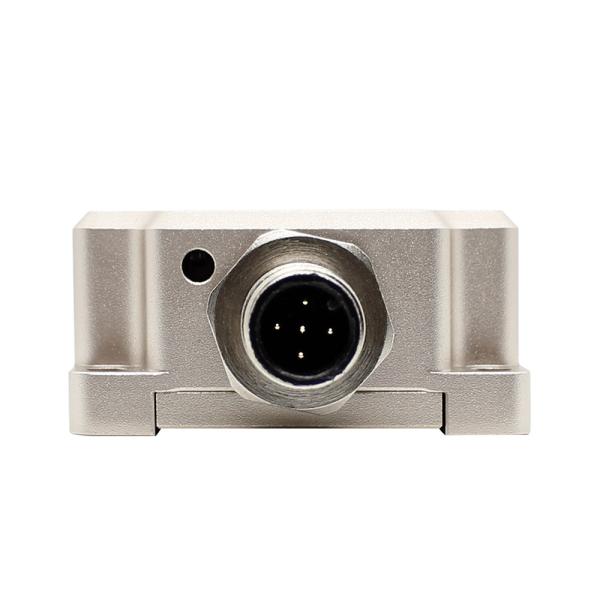

HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
Specifications
Model Number :
HDA436T-TTL-MB
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
cartons
Price :
$161.00/Pieces
Certification :
CE, ISO
MOQ :
1
Payment Terms :
T/T, PayPal
Supply Ability :
5000 pcs/month
Delivery Time :
7 days for samples
Technology :
MEMS
Application :
Industrial Automation
inclinometer wide voltage input :
DC9~36V
protection class :
IP67
High Resolution :
0.01°
Highly anti-vibration performance :
>2000g
static accuracy :
± 0.05°
dynamic accuracy :
± 0.3°
Description

HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision

▶ PRODUCT FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)
★ Dynamic accuracy: ± 0.1 °
★ DC 9 ～ 36V wide voltage input
★ Wide temperature operation -40 ～ + 85 ℃ ★ Resolution 0.01 °
★ IP67 protection level ★ High anti-vibration performance> 2000g
★ Size: L107 × W54 × H31mm

HDA536T
Condition
Index
Measuring
/
Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)
Measuring axis
/
X axis / Y axis / Z axis
Resolution
　
0.01°
Static accuracy
@25℃
± 0.05°
Dynamic accuracy
@25℃
± 0.3°
Bias Instability (Allan)
　
8°/h
Zero point temp. coefficient
-40～85°
±0.01°/℃
Sensitivity temp. coefficient
-40～85°
≤100ppm/℃
Power-on startup time
1S
Response time
0.01S
Output signal
RS485/RS232/TTL
Electromagnetic compatibility
According to EN61000 and GBT17626
MTBF
≥ 50000 hours / time
Insulation resistance
≥100 Megohm
Impact resistance
100g @ 11ms, Triaxial and identical (half sine wave)
Anti- vibration
10grms,10～1000Hz
Protection grade
IP67
Cable
2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
Weight
295g (excluding cable)
HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
HDA436T Moving Situation Dynamic Inclinometer Angle Measure 3 Axis High Precision
