HDA436T Digital MEMS Dynamic Tilt Sensor To Measure Dynamic Machinery
HDA436T Digital MEMS Dynamic Tilt Sensor To Measure Dynamic Machinery
HDA436T Digital MEMS Dynamic Tilt Sensor To Measure Dynamic Machinery
HDA436T Digital MEMS Dynamic Tilt Sensor To Measure Dynamic Machinery
HDA436T Digital MEMS Dynamic Tilt Sensor To Measure Dynamic Machinery
HDA436T Digital MEMS Dynamic Tilt Sensor To Measure Dynamic Machinery
Specifications
Brand Name :
Rion
Model Number :
HDA436T-C2
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$105/Pieces 1-9 Pieces
Payment Terms :
T/T, PayPal
Supply Ability :
5000/month
Delivery Time :
7 days for samples
Packaging Details :
box
Static accuracy :
± 0.05°
Dynamic accuracy: :
± 0.1°
Resolution :
0.01°
Power-on startup time :
1S
Output signal :
RS485/RS232/TTL
Measure axis :
X axis / Y axis / Z axis
Insulation resistance :
≥100 Megohm
Weight :
≤165g (excluding cables)
Description

HDA436T Digital MEMS dynamic tilt sensor to measure dynamic machinery

▶ KEY FEATURES

★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)

★ Dynamic accuracy: ± 0.1°

★ Static accuracy: ± 0.05°

★ DC 9~6V wide voltage input

★ Wide temperature operation -40~+ 85℃

★ IP67/IP68 Protection level Optional

▶ PRODUCT APPLICATION

★ High vibration impact gravel equipment

★ Railway locomotive monitoring

★ Satellite communication vehicle attitude detection

★ Shield pipe jacking application

★ Shield pipe jacking application

★ Geological equipment tilt monitoring

★ Underground drilling rig attitude navigation

★ Ship navigation attitude measurement

▶ PRODUCT DESCRIPTION

HDA436T/HDA437T A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.HDA436T has a built-in high-precision acceleration and gyro sensor, and integrates the Kalman filter algorithm, which can measure the real-time motion data of the carrier under motion or vibration. The signal output modes such as RS485 / RS232 / TTL are optional, and the scalability is strong.

This product adopts non-contact measuring principle, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes of the two surfaces.Internally integrated high-precision AD and high-precision gyro units to compensate for non-linear, orthogonal coupling, temperature drift and centrifugal acceleration in real time; greatly eliminate centrifugal errors caused by motion acceleration interference, improve product dynamic measurement accuracy; adapt to long-term complex movements Work in places and harsh environments.The product is a dynamic and static dual-mode measurement sensor with strong resistance to external electromagnetic interference.It is suitable for all kinds of large-scale and high-strength shock and vibration industrial environments, and is an ideal choice for industrial automation control and measurement of attitude.

▶SPECIFICATIONS

HDA436T CONDITION INDEX
Measure range -

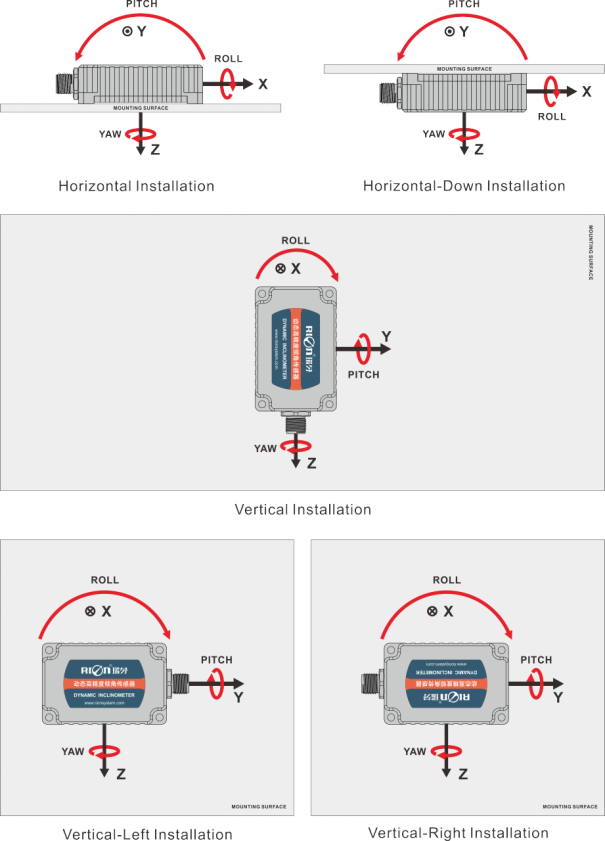

Roll ±180°, pitch ±90°, azimuth ±180°

(initial value at power-down is 0°)
Measure axis - X axis / Y axis / Z axis
Resolution - 0.01°
Static accuracy @25℃ ± 0.05°
Dynamic accuracy(RMS) @25℃ ± 0.1°
Gyro range - ±250°/s
Zero bias stability (10s mean) - 8.5°/h
Zero Bias Instability(allan) - 4.5°/h
Angle random walk coefficient(allan) - 0.25°/sqrt(h)
Acceleration range - ±8g
Bias stability(10s mean) - 0.02mg
Bias instability(allan) - 0.005mg
Speed random walk coefficient(allan) - 0.005m/s/sqrt(h)
Zero point temp. coefficient -40～85℃ ±0.01°/℃
Sensitivity temp. coefficient -40～85℃ ≤100ppm/℃

Power-on startup time

 1S
Response time 0.01S
Output signal

RS485/RS232/TTL
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 98000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms,10～1000Hz
Waterproof level

standard configuration: IP67

optional configuration: IP68 or IP68 with anti-corrosion cable
Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight

≤165g (excluding cables)
