RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator
Specifications
Place of Origin :
Guangdong, China
Brand Name :
RION
Model Number :
DMI820
Packaging Details :

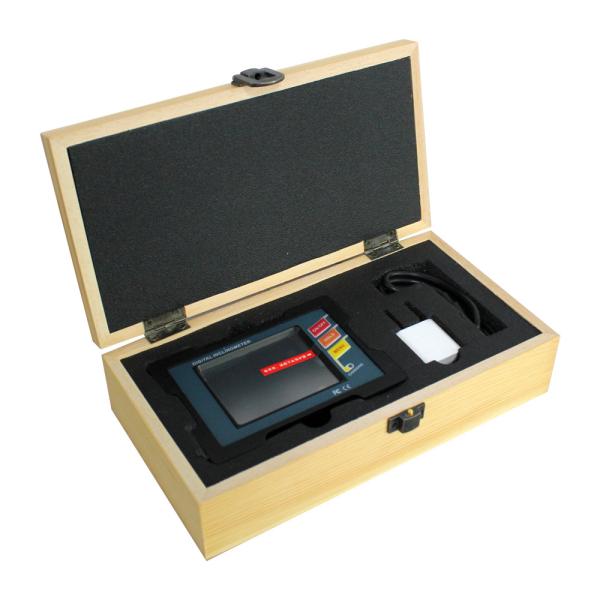

1pcs tilt meter in each wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Supply Ability :
30000 Piece/Pieces per Week tilt meter are avaliable
Price :
$438.00/Pieces >=1 Pieces
Certification :
CE, RHOS
MOQ :
1
Payment Terms :
T/T, Paypal
Delivery Time :
7 days for samples
Digital inclinometer Measuring range :
+/-15deg , +/-30deg optional
Accuracy :
<0.005deg @+/-15deg (full range) , <0.01deg@+/-30deg (full range)
MM measuring range :
267~577mm
MM measuring accuracy :
0.1mm@267mm(range), 0.2mm@577mm(range)
Product size :
L105*W73*H27.1mm
Resolution :
0.001°
Repeatability :
<0.003°
LCD :
64 true colors night vision display screen
Power supply :
3.7V Charging Lithium battery
Working Temp. :
-10 ~ 70C
Port :
Shenzhen
Description

Selling RION High Precision Touch Screen Digital Inclinometer

Features:

  • Accuracy:<0.003°
  • Repeatability:0.003°
  • Angle resolution:0.001°
  • Measuring range:±15°,+/-30°
  • User can set the alarm value by himself
  • Data store function
  • Absolute/Relative measurement can switch
  • Both sides and bottom can measure

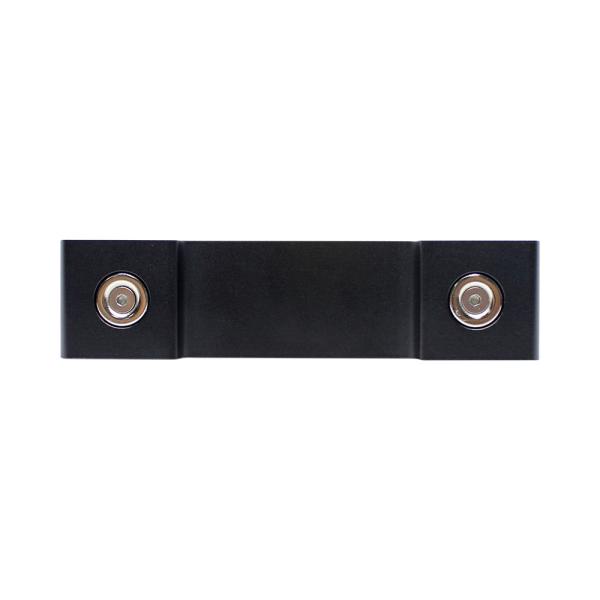

  • Double benchmark strong magnet installation
  • Working Temperature : -10°~ +65°C
  • Auto-angle interleaved compensation function
  • Auto temperature drift compensation
  • User can calibrate ZERO by himself
  • Built-in rechargable industy battaries
  • Night vision fours colors screen
  • IP54protection class
  • °/mm/m Dual units switch funciton
  • Filter frequency optional
  • Three kinds of measurement mode selectable (radian, angle, mm)

Application :

  • Building construction
  • Automobile four wheel testing
  • Road slope
  • Machinery installation
  • Piping installation
  • Industrial platform
  • Turntable testing
  • Pan unit angle detection
  • Production jig
  • Medical instruments

Specification
PARAMETER DMI810 DMI820 UNIT
Angle Measure range ±15 ° ±30 ° ±15 ° ±30 ° °
MM measure range 267 577 267 577 mm/m
Meausre axis Single axis Single axis Single axis Single axis
Highest measurement accuracy (full range) <0.005 <0.01 <0.005 <0.01 °(RMS)
Angle Measure resolution 0.001 0.001 0.001 0.001 °
Repeatability 0.003 0.003 0.003 0.003 °
MM measure accuracy 0.1 0.2 0.1 0.2 mm/m
Three measurement mode selectable

①Angle ②degree, minute, second ③mm/m

three modes can be set

 /
MM measure res 0.02 mm/m
LCD 64 true colors night vision display screen /
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃ ℃
Working humidity 85 %RH
Power supply 3.7V Charging Lithium battery V
Ideal charging time 5 h
Battery sustainable charging times 11 h
Equipped with PC software VC software /
Data output signal USB1.1 (Virtual Serial Device) /
Connect plug in Standard USB connector, rechargeable /
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid) g
Shock impact 10grms,10~100Hz g
Waterproof grade IP54 /
Material Aluminum alloy Anodizing /
Size L107*W75*H27.1 mm
Weight 300 g


Size

RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator

RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator

RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle IndicatorRION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle IndicatorRION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator

Real Photo

Top Selling RIONTouch Screen Digital Inclinometer For Building Detection

RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator

RION 577mm High Accuracy Digital Inclinometer Lithium Battery Angle Indicator

Packing Size: L22*W12*H6mm

Packing Weight : 0.8~1KGS
