RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
RION High Accuracy Portable 2 Axis Digital Inclinometer 0.002deg Industry Grade
Specifications
Model Number :
DMI850-30
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
each in a wooden box, 50pcs/ctn
Price :
$2344.00/Pieces
Certification :
CE
MOQ :
1
Payment Terms :
T/T, Paypal
Supply Ability :
100,PCS,A WEEK
Delivery Time :
5-10 work days
Best accuracy： :
<0.002°
Brand :
RION
protection class :
IP54
angular resolution :
0.0005°
working temperature :
-10℃～ +70℃
Package / Case :
Metal
FUNCTION :
Night vision four color screen
two mode :
°/mm Dual units switch function
High anti-impact :
1200g
power supply :
3.7V Charging Lithium battery
Usage :
Level Sensor
Maximum measurement range :
±30°
Description

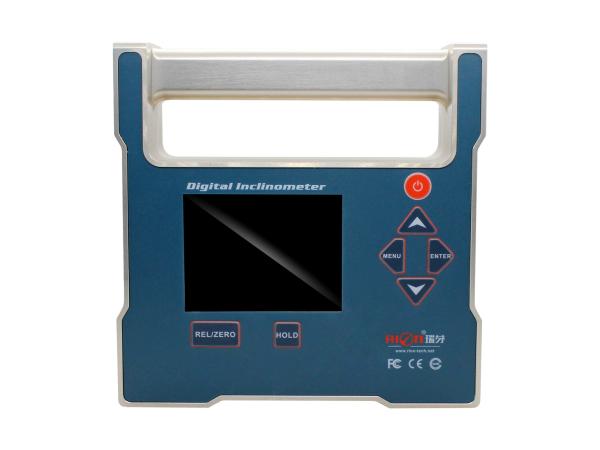

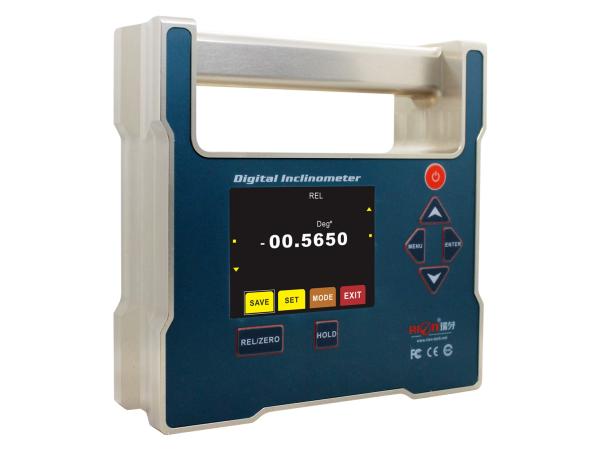

DMI850 RION High Accuracy 0.002deg Digital Inclinometer Level Meter Portable

▶ PRODUCT DESCRIPTION

DMI850 is one Single axis Digital Inclinometer developed by RION company based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current current and signal ratio of inclination , can meet the highest level accuracy of 0.001 degrees, the resolution is up to 0.0005 degrees. It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.

▶ KEY FEATURES

★ Best accuracy:<0.002° ★ angular resolution:0.0005°

★ IP54 protection class ★ Maximum measurement range:±30°

★ Absolute / relative measurement switchable ★ data storage function

★ Both side and bottom can be measured ★ working temperature -10℃～ +70℃

★ Double benchmark strong magnet installation ★ Alarm angle can be set

★ Automatic angle interpolation compensation function ★ Night vision four color screen

★ Customers can calibrate the zero point by themselves

★ Angle or length double unit switch

★ 2 kinds of measurement mode selectable

▶ APPLICATION RANGE

★ Building construction ★ Automotive four-wheel inspection

★ Mechanical installation ★ Pipe installation ★ Industrial platform ★ Road slope

★ Pan-tilt angle detection ★ Turntable detection ★ Production fixture ★ Medical instruments

▶ PARAMETER

DMI850 PARAMETER unit
Measurement Range ±30 °
Measuring Axis Single-axis
Best Accuracy <0.002 (＜5°),<0.003 (5°-30°) °(RMS)
Resolution 0.0005 °
Measurement Mode Two modes can be set: degree, mm / m /
Lcd 64 color true color luminous display /
Lcd Visible Size L60*W45 mm
Operating Temperature -10°～ +70℃ °/℃
Working Humidity 85 %RH
Power Supply 2A No.5 battery /
Battery Continuous Working Time 6 h
Anti-Vibration 10g @ 11ms, triaxial and same (half sine wave) /
Impact Resistance 10grms,10～100Hz /
Weight 1200 g
Protect Class IP54 /
Material Anodizing of aluminum alloy /
Size L140*W140*H45mm mm
