10 Point Multi Riotouch Interactive whiteboard skd for touch screnn monitor
10 Point Multi Riotouch Interactive whiteboard skd for touch screnn monitor
Specifications
Place of Origin :
GuangDong China
Brand Name :
Riotouch, OEM is available
Certification :
CE,FCC,ROHS,ISO9000
Model Number :
HV
Interface Type :
USB, HDMI
Touch technology :
Infrared
Application :
School, Office, Desktop, Computer, digital whiteboard
Response Time :
8ms
Brightness :
350cd/m
Contrast Ratio :
1500:1
Widescreen :
Yes
Software :
Education software for free
support system :
win7, win8, Linux, Mac, Android
Resolution :
1920*1080, 3840*2160,32767*32767
Touch panel brand :
LG,SHARP,CMO,AUO
Display Type :
LED
Hard Drive Capacity :
500GB
Memory Capacity :
2GB/4GB/8GB
Panel Type :
All-In-One
SIZE :
55''70'',84''.65''.
MOQ :
1SET
Price :
USD 1-600
Packaging Details :
polyfoam for inner packing and carton for outer packing
Delivery Time :
3-7 days after payment
Payment Terms :
T/T .Western Union
Supply Ability :
5000SET/MONTH
Screen Size :
32-169
Products Status :
Stock
Description

10 Point Multi Riotouch Interactive whiteboard skd for touch screnn monitor

Specifications

1.ROHS&CE applied
2.OEM/SKD service offer
3.3 years warranty
4.IR multi touch screen panel kit

Infrared Multi touch screen kit for sale from china supplier support multi under Win7 and Win8

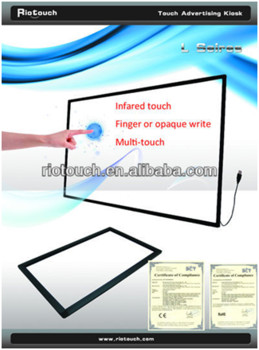

RioTouch L series large size infrared multi touch screen panel kit is the latest developed infrared touch screen, its slim frame can match completely the monitors or displays in thin-frame, ideally upgrading the visual appearance of whole device. Unlike most other technologies, the Infrared based design offers superb image clarity. The original image quality is preserved because there is no film in front of the display. After a simple installation, the screen can be operated with either a finger, with or without glove or a pen.

Touch Technology: Infrared Touch

Available size: 32",37",40", 42", 46", 47", 50", 52", 55", 58",60", 61", 63", 65", 84", 100", 103", 110", 150".

Touch function 1. support two point write under Win7 2.Finger touch Gesture control under single touch (zoom in/out ,rotate,turn page)
3.supoort double system o
Performance
Aluminum frame size 871*1498*11mm ±2mm
Toughened glass thichness (can choose) 4mm
Effective touch size 802*1429mm error ±2mm
Exteral aluminum material aluminum alloy+4mm toughened glass
Touch method finger touch and other Opaque objects
Touch Times unlimited
Touch Activation Force No minimum touch activation force is required
Minimum Touch Object 5mm*5mm
Performance
Resolution(interpolation) 4096*4096
Linearaty error <1.5mm
Response time <15ms
Cursor speed 300point/s
Operating system standard HID device,install without driver ;operation system:32 bit or 64bit XP,Vista,win7,Mac OS X 10.5 and above
Electrical Features
Power insert value typical value +5VDC,allow range: +4.75V ~ +5.25V
Power <1.5W
Connection method USB
Agency Approvals CE, ROHS
Environmental
Tempreture operating tempreture : -20°C ~ 70°C ; storage tempreture : -40°C ~ 85°C
Humidity operating humidity : 0%-90% RH (No condensation)
storage humidity : 0% - 95% RH (No condensation)
Altitude up to 3,000m
Ambient Light Direct sunlight 90°to ±30° to the display surface Touch detection can operational
Direct sunlight all angles to display surface Free of false touch reports
LED life time >= 7 years

1. Perfect matching of various sizes

2.Easy to install.

3.Application : For many fields
