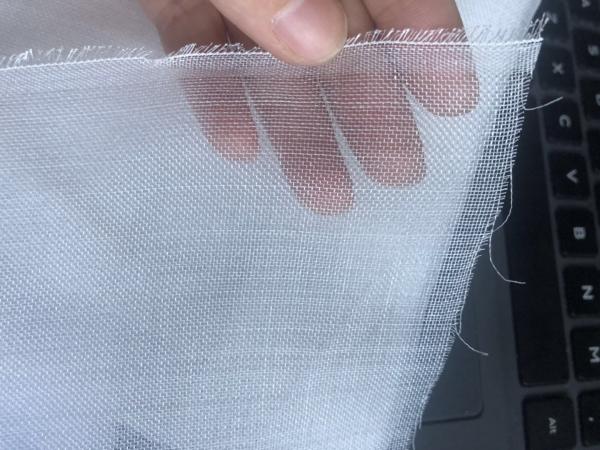

alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh
Specifications
Brand Name :
RIQI
Place of Origin :
Hangzhou
MOQ :
1m2
Price :
80usd/m2 to 200 usd/m2
Supply Ability :
500m2/day
Delivery Time :
5-15days
Packaging Details :
standard export packing
Mateiral :
PTFE
Usage :
Liquid Filter,dry filter , Powder filter Air filter
Type :
woven filter
Application :
Sewage Dewatering
Feature :
Good acid and alkaline resistance
Working temperature :
250-280deg C
product name :
PTFE cloth , toflon cloth , PTFE mesh
Certification :
ISO9001 SGS
Description

Good acid and alkaline resistance PTFE Mesh Filter Fabric 300 Micron 200 micron 40 Mesh, 60mesh ,100mesh

Temperature: -20~250°C (-4~+482°F)

Pressure: -0.1~6.4Mpa (Full vacuum to 64kgf/cm2)

Thermostability: working temperature can up to 250°C

Weaving method: plain weaving, between 15mesh to 150mesh

Industrial applications for ptfe mesh:
Chemicals, resins and solvents
Hydraulic oils
Petroleum refining
Power generation
Pulp and paper industry
Fuel lines

1.Good capability and wide usage

2.High temperature resistance

3.High tensile strength

4.OEM welcome

ptfe mesh technical data :

Product Name Mesh number Wire diameter width

Weight

g/M

 MOQ

PTFE mesh

 28 mesh /30 mesh (3028) 0.2mm 2.25m 330 2.25m*1m
38 mesh/40 mesh (3838) 0.2mm 2.1m 336 2.1m*1m
50-70 mesh (7050) 0.16mm 2m 580 2m*1m
80 mesh (7560) 0.1mm 1.2m 532 1.2m*1m
100 mesh (8680) 0.08mm 1m 425 1m*1m

alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh

alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh

alkaline resistance PTFE Filter Cloth 300 Micron 200 Micron 40 Mesh

PTFE filter felt

PTFE is more suitable for harsh conditions that require corrosion resistance and long service life of filtration material, fume handling of coal-burning boilers, garbage incinerators, carbon black production and TiO2 production. It can be used in the process of initial metallurgy and refining for some metals as well as chemical production.

It widely used in steel, power, waste incineration flue gas filtration and other harsh environments.
Filter bags, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

Technical Specifications
Component Shell Fiber PTFE
Scrim PTFE
Weight 750±5%g
Thickness 1.8±0.1mm
Air Permeability 120-150(L/dm2 .min)
Tensile Strength N/5*20cm Length ≥650
Cross ≥650
Temperature Countine 260ºC
Peaks 300ºC
Finish Heat Stabilization,Glaze,Singe,PTFE Impregnate
Use Scope Unit with ESP and bags or old unit retrofits,or unit requires long longivity and lower oxgen.ESP for the dust contents with high SO2 and NOX
Application Field/Use Scope Steel, Metallurgy, Cement, Power, Chemical,
Dust Treatment, Building Wastage.
Waste Incinerators,
Chemical Corrosion
Coal-fired boilers
Solvent Collection
Valuable Dust
Features Acid Resistant .Alkali Resistant .Custom-Made ..

Application of nonwoven filter fabric for dust collection bag

Asphalt Plant

Lead Refinery

Cement plant

Steel plant

Waste incineration

Timber mill

Power generation

Treatment of nonwoven filter fabric for dust collection bag

Normal Treatment: Singed,Calendered,Heat set

Special Treatment: Anti-static, water&oil repellent,PTFE dipping/coating/membrane,etc

Treatment of fiberglass: acid resistant, silicon, graphite, PTFE finish, PTFE membrane, tri-treatment(silicon, graphite, PTFE dipping)

Main Features

PTFE membrane needle felt is compounded by micro grain film and varied foundation in special techniques, with excellent chemistry stability and neat, smooth surface. It has the advantages of good air permeability, high temperature endurance and Condensation resistant. It is mainly used in chemistry industry,garbage burning, gas cleaning and industrial waste gas processing.

Advantages of Our Compancy

1) Two-high-speed non-weaving needle production lines, which produce all kinds of complex-fibre non-woven filter fabric and compound filter fabric
2) All kinds of filter colth's finishing machine,such as filter surface heated-wollen which make the filter felt surface appearance more smooth.
3) High temperature stabilization hot rolling machine and sentering stabilization ovens used for filter felt PTFE macerating, coating and oi and water repellant finishing.
4) We have own laboratory of development and we have Patented dozens of technology Paten. A series of inspection equipment, make all products have to pass strict inspection before go out.
5) Automatic production line, which sewn high quality filter bags.
