Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,
Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,
Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,
Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,
Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,
Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,
Specifications
Brand Name :
floor hinge
Model Number :
top hinge
Certification :
floor hinge
Place of Origin :
China
MOQ :
200pcs
Price :
floor hinge
Payment Terms :
T/T, Western Union
Supply Ability :
500+pcs per month
Delivery Time :
30 days
Packaging Details :
box, carton
material :
casting iron
plate finishing :
satin or mirror
weight capacity :
up to 90kgs
width :
up to 900mm
Description

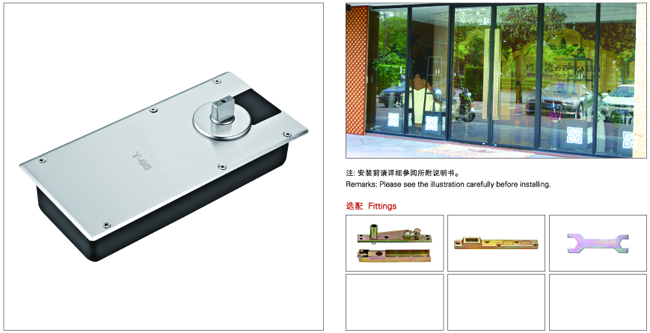

Floor Hinge T-08

1. Plate finish: Mirror, Satin

2. Materials: Iron

3. Max door width: 900mm

4. Max door weight: 95kgs

5. Available for steel and wooden doors, 8-12 toughened glass door

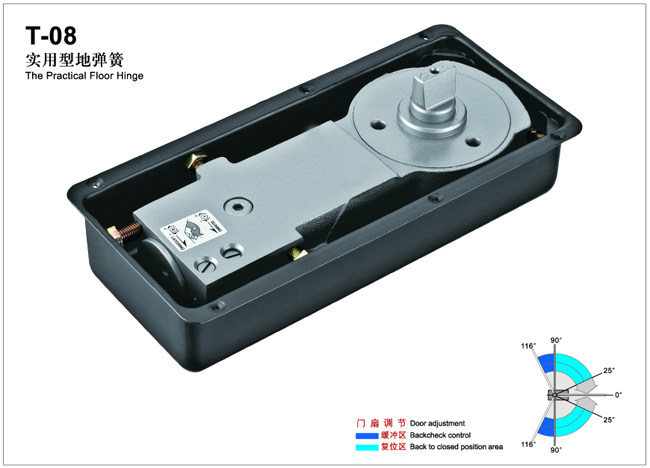

6. Function: One way open at 116o, 90o and 116o two-way positioning

7. Feature: Switching for 500,000 time

Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,

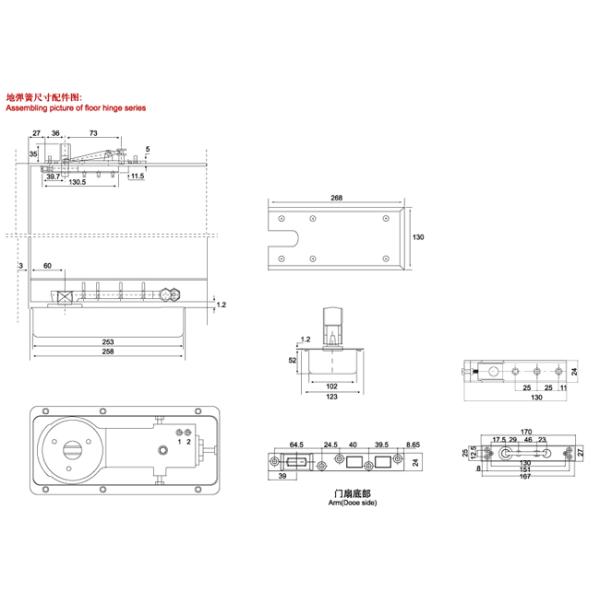

Floor spring Installation steps:

A. Draw lines and make floor spring pivot center and door-nip pivot coincide with each other

B. Drill holes on the floor accordng to the instructions, the sizes of the holes must tightly match the floor spring.

C. Place the floor spring into the holes and position it.

D. Raise the door leaf installed with door-nlp, and insert the floor spring pivot into the hole of the door leaf

E. Adjust the screws at three directions. Make them vertical and the upper and lower pivot center coincide with each other.

F. Adjust the speed of door closing.

G. Put the decoration cover on the floor spring.

Floor Hinge T-08, color:black, casting iron, weight capacity 95kgs,
