Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
Specifications
Brand Name :
Weld on hinge
Model Number :
PH611
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
USD0.1-10 PER PC
Payment Terms :
T/T
Supply Ability :
100000 PCS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
BOXING, CARTON, PALLET
Material :
steel or stanless steel 304
Finishing :
self color
Size :
40-300mm
Description

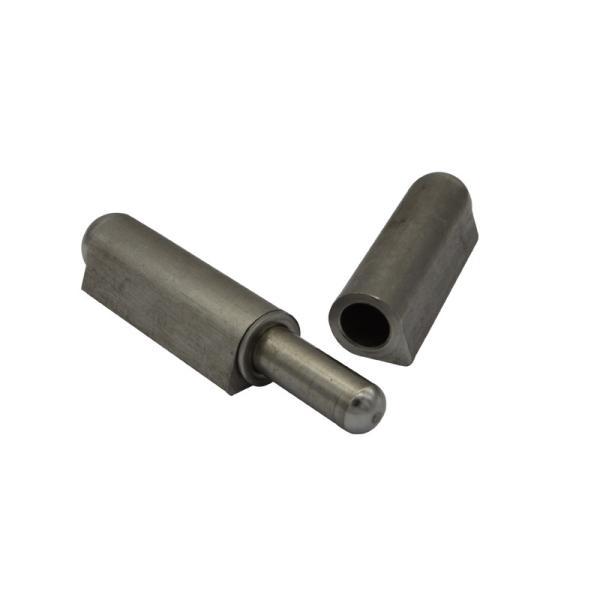

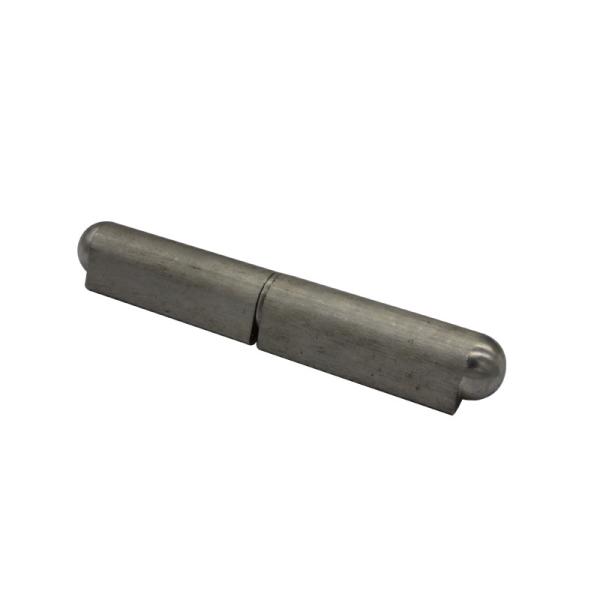

Weld on hinge PH611

1. Material: Steel, SS304, aluminium

2. Finishing: self color

Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,

*Steel Body& Pin, Brass washer*

ITEM NUMBER METERAIL L H B L1 L2 D
PH611-40 Steel Body& Pin, Brass washer 1.58 0.38 0.315 0.63 0.58 0.197
PH611-50 Steel Body& Pin, Brass washer 1.97 0.38 0.315 0.79 0.58 0.197
PH611-60 Steel Body& Pin, Brass washer 2.36 0.46 0.394 0.93 0.7 0.236
PH611-70 Steel Body& Pin, Brass washer 2.76 0.51 0.45 1.13 0.85 0.236
PH611-80 Steel Body& Pin, Brass washer 3.15 0.629 0.55 1.29 0.85 0.315
PH611-100 Steel Body& Pin, Brass washer 3.94 0.77 0.63 1.63 1.2 0.394
PH611-120 Steel Body& Pin, Brass washer 4.75 0.77 0.63 2.04 1.2 0.394
PH611-135 Steel Body& Pin, Brass washer 5.32 0.866 0.709 2.25 1.5 0.5
PH611-150 Steel Body& Pin, Brass washer 5.91 0.984 0.787 2.54 1.5 0.5
PH611-180 Steel Body& Pin, Brass washer 7.09 0.984 0.787 3.15 1.63 0.5
PH611-200 Steel Body& Pin, Brass washer 7.87 1.1 0.905 3.44 1.92 0.59
PH611-300 Steel Body& Pin, Brass washer 11.81 1.417 1.259 5.137 1.92 0.669

*Steel Body,Brass Pin &washer*

ITEM NUMBER METERAIL L H B L1 L2 D
PH611-40 Steel Body,Brass Pin &washer 1.58 0.38 0.315 0.63 0.58 0.197
PH611-50 Steel Body,Brass Pin &washer 1.97 0.38 0.315 0.79 0.58 0.197
PH611-60 Steel Body,Brass Pin &washer 2.36 0.46 0.394 0.93 0.7 0.236
PH611-70 Steel Body,Brass Pin &washer 2.76 0.51 0.45 1.13 0.85 0.236
PH611-80 Steel Body,Brass Pin &washer 3.15 0.629 0.55 1.29 0.85 0.315
PH611-100 Steel Body,Brass Pin &washer 3.94 0.77 0.63 1.63 1.2 0.394
PH611-120 Steel Body,Brass Pin &washer 4.75 0.77 0.63 2.04 1.2 0.394
PH611-135 Steel Body,Brass Pin &washer 5.32 0.866 0.709 2.25 1.5 0.5
PH611-150 Steel Body,Brass Pin &washer 5.91 0.984 0.787 2.54 1.5 0.5
PH611-180 Steel Body,Brass Pin &washer 7.09 0.984 0.787 3.15 1.63 0.5

*SS304 Body, Pin &washer*

ITEM NUMBER METERAIL L H B L1 L2 D
PH611-40 SS304 Body, Pin &washer 1.58 0.38 0.315 0.63 0.58 0.197
PH611-50 SS304 Body, Pin &washer 1.97 0.38 0.315 0.79 0.58 0.197
PH611-60 SS304 Body, Pin &washer 2.36 0.46 0.394 0.93 0.7 0.236
PH611-70 SS304 Body, Pin &washer 2.76 0.51 0.45 1.13 0.85 0.236
PH611-80 SS304 Body, Pin &washer 3.15 0.629 0.55 1.29 0.85 0.315
PH611-100 SS304 Body, Pin &washer 3.94 0.77 0.63 1.63 1.2 0.394
PH611-120 SS304 Body, Pin &washer 4.75 0.77 0.63 2.04 1.2 0.394
PH611-150 SS304 Body, Pin &washer 5.91 0.984 0.787 2.54 1.5 0.5
PH611-180 SS304 Body, Pin &washer 7.09 0.984 0.787 3.15 1.63 0.5

*AL Body, SS304 Pin & Washer*

ITEM NUMBER METERAIL L H B L1 L2 D
PH611-60 AL Body, SS304 Pin & Washer 2.36 0.46 0.394 0.93 0.7 0.236
PH611-80 AL Body, SS304 Pin & Washer 3.15 0.629 0.55 1.29 0.85 0.315
PH611-100 AL Body, SS304 Pin & Washer 3.94 0.77 0.63 1.63 1.2 0.394
PH611-120 AL Body, SS304 Pin & Washer 4.75 0.77 0.63 2.04 1.2 0.394
PH611-150 AL Body, SS304 Pin & Washer 5.91 0.984 0.787 2.54 1.5 0.5
PH611-180 AL Body, SS304 Pin & Washer 7.09 0.984 0.787 3.15 1.63 0.5
PH611-200 AL Body, SS304 Pin & Washer 7.87 1.1 0.91 3.44 1.92 0.59

Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,Weld on hinge PH611, material: steel, stainless steel, or aluminium, self color finishing,
