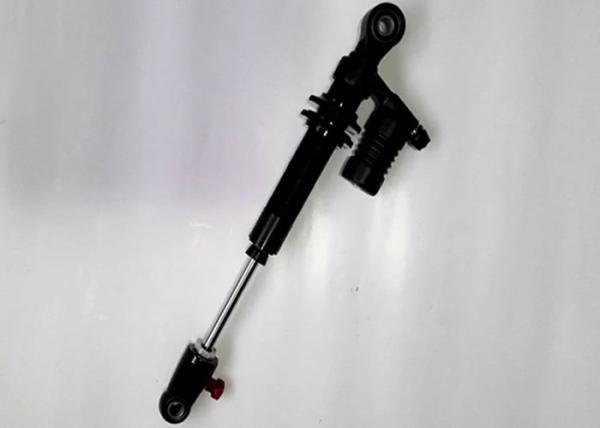

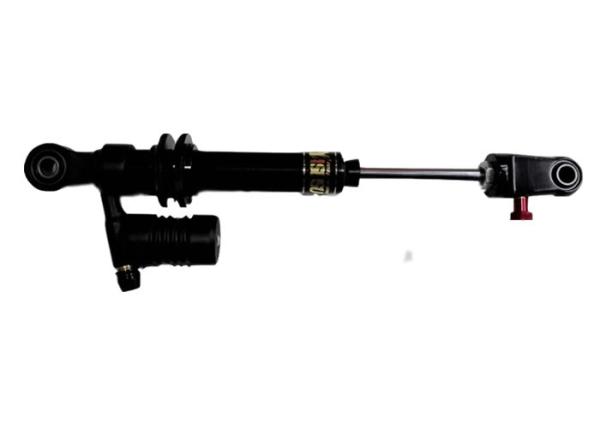

280-360mm Rear Shcok Coil Damper for karting car balance suspension
280-360mm Rear Shcok Coil Damper for karting car balance suspension
280-360mm Rear Shcok Coil Damper for karting car balance suspension
280-360mm Rear Shcok Coil Damper for karting car balance suspension
Specifications
Brand Name :
ACESHOX
Model Number :
ARC303
Certification :
ISO9001
Place of Origin :
TAIWAN
MOQ :
30 pieces
Price :
Negotiable
Payment Terms :
T/T, Paypal
Supply Ability :
20000 pieces per month
Delivery Time :
45-60 days
Packaging Details :
Carton
Product :
280-360mm Rear Shock Balance Damper
Length :
280-360mm
Travel :
60-90mm
Adjustment :
Rebound, Compression, Preload
Shock Body :
AL7005, 28mm Diameter
Piston Rod :
10mm, Cr-mo Japan
Bushing :
DU+ Ball Bearing
Application :
Rear Shock, Balance Damper Suspension
Description

280-360mm Rear Shcok Coil Damper for karting car balance suspension

ARC303 is Light-Duty Hydraulic Damper Suspension with 280-360mm length range. It can be used on formular karting cars and buggy for balance of rear wheels.

Features:

1) Lightweight: Made of AL7005 and diameter 28mm, the weight is 580 grams for 330mm eye-to-eye length.

2) Hydraulic Damper: Rebound 10 grades, Adjustment 10 grades.

Technical Data:

Product Hydraulic Balance Damper For Karting Buggy
Name ARC303
Length 280-360 mm
Travel 60-90 mm
Shock Body Al7005, T4/T6 Heat Treatment, Dia=28mm
Damper Hydraulic, with nitrogeon gas inside
Adjustment Preload, Rebound 10 grades, Compression 10 grades
Weight 580 grams (330mm)
Spring Coil Spring
Bushing DU+Fisheye Bearing
Application Karting Buggy, Gokart, Formula Student Cars, etc
Damping Curve Available
Warranty 1 year
Customize Sevice Available

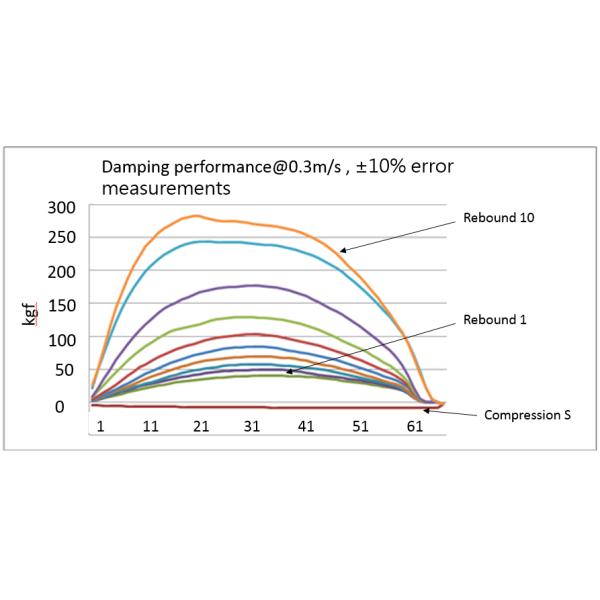

Damping Performance Curve
280-360mm Rear Shcok Coil Damper for karting car balance suspension
