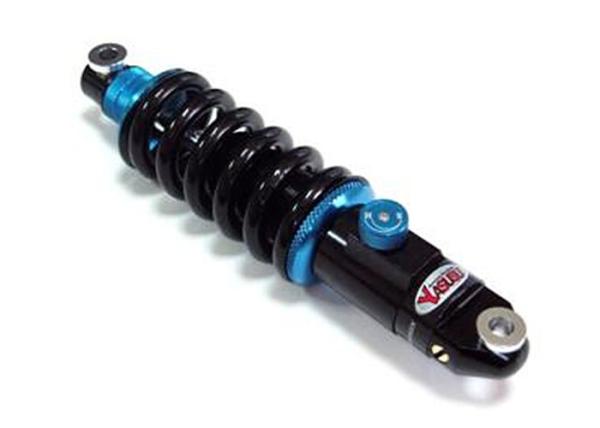

Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm
Specifications
Brand Name :
SENSHOX
Model Number :
BNCP-601
Certification :
ISO9001,3C
Place of Origin :
TAIWAN
MOQ :
200 units
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
50000 units/month
Delivery Time :
45 days after order confirmation
Packaging Details :
Carton
C/C Length :
175-230mm
Travel :
25-50mm
Spring Rate :
200-1200lbs
Shock Body :
AL6061-T6 CNC,Hard Anodized
Adjustment :
High Speed Compression Damper, Rebound, & Preload Adjustment
Damper :
Hydraulic with Nitrogen
Warranty :
1 year
Test :
Reliability test passed
Application :
Powered Wheelchair, FSE/FSC Cart
Spring :
Coil Spring
Lockout :
Yes
Description

Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mmPowered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm

Powered Wheelchair Spring Shock Suspension with Damper Compression/Rebound 175-230mm

MODEL BNCP-601
SHOCK BODY AL6061-T6 CNC, HARD-ANODIZED
BUSHING AS PER REQUIREMENT
SPRING RATE 200-1200LBS,COIL STEEL SPRING
LENGTH 175-230MM.(CUSTOMIZED)
TRAVEL 20-50MM
WEIGHT 0.375KG(W/O SPRING)
TYPE SUSPENSION OF POWERED WHEELCHAIR, FSC/FSE CART ETC
ADJUSTMENT HIGH-SPEED COMPRESSION/REBOUND/PRELOAD ADJUSTMENT
DAMPER HYDRAULIC WITH NITROGEN CHARGED
FEATURES PEFORMANCE SHOCK ABSORBER WITH WIDE RANGE OF DAMPER ADJUSTMENT, NITROGEN CHARGED.


Lockout: Yes

Feature: High Quality Spring Steel(Japan imported or Bao Steel), lasting not easy to fatigue.

Virtual Lockout
Nitrogen charged
Externally adjustable velocity sensitive damping compression and rebound

Preload adjustment

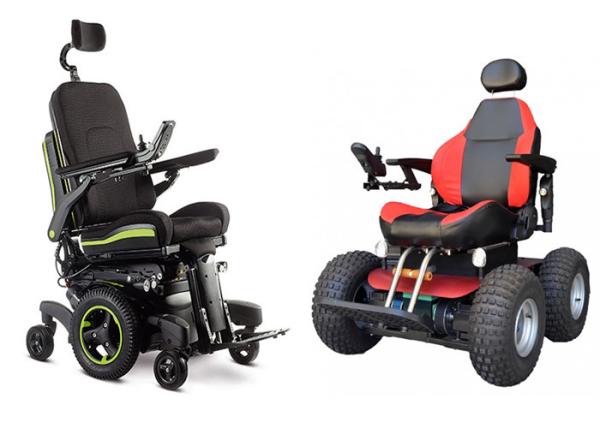

Application: suspension of Powered wheelchair, Foruma Student Racing Cart(FASE,FASC)

Risen Bicycle is a professional manufacturer and supplier of wheelchair spring shocks in China for many years. We can customize different sizes of spring shocks for customers. Our main market are in Usa, Canada and Europe and etc. We can also make according to your drawings.
