PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
Specifications
Place of Origin :
Shandong, China
Brand Name :
risense
Model Number :
CC-690
Size :
9500x3800x3440MM
Material :
hot dip galvanized frame
Warranty :
one year
Output Power :
>1500W
Design Style :
automation
Automatic Type :
Fully Automatic
Overall Dimensions :
9500x3800x3440MM
Assembling Range :
11600x3800mm
Total power :
34.82KW
Control System :
PLC
No. of Brushes :
Nine Brushes
Blower and Dryer :
Including
Available car to wash :
car/jeep/coach within 10seats
Available size for car :
5300x2200x2100mm
Type :
Car Washer
Packaging Details :
Hot Dip Galvanized Frame Automatic Tunnel Car Wash Machine Car Wash System:
The car wash machine will be packaged by seaworthy cases or pallets.
Port :
Qingdao Port, China
Supply Ability :
200 Set/Sets per Month
Price :
$40,000.00/sets >=1 sets
MOQ :
1 PC
Description

PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning

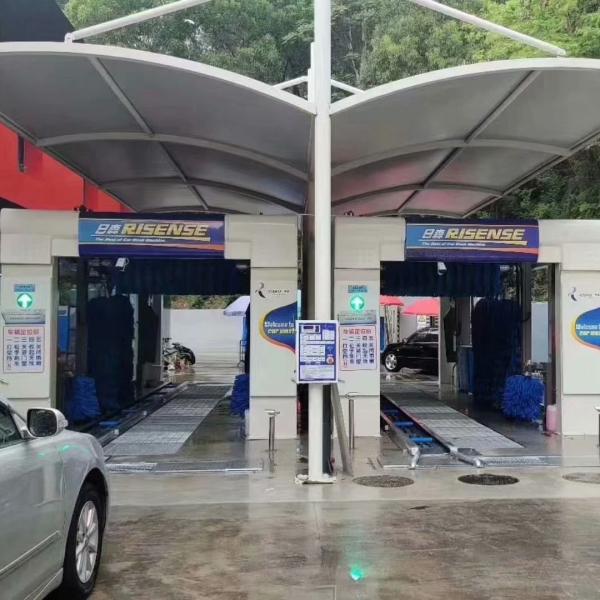

CC-690 tunnel car wash system is with 9 brushes and suitable for washing Sedans, Jeeps, Minibuses with up to 10 seats and other vehicles. It features with its automatic conveyor and PLC fully automatic computor controlled system to improve its security. Its dryer moves up and down according to the car body so it will dry the car quickly.

Model CC-690
Dimension L*W*H: 9.5m*3.8m*3.44m
Conveyor 11.6m(including car wheel guide devices)
Assembling Range L*W: 11880mm*3800mm
Voltage AC380V, 50Hz (5 wire system)
Water supply DN25mm, water flow rate>200L/min
Air pressure 0.75-0.9Mpa
Air flow rate more than 0.1m3/min
Ground flatness Deviation less than 10mm
Applicable vehicle Sedan, Jeep, Minibus within 10 seats
Applicable car dimension L*W*H: 5.2m*2.15m*2.2m(wheelbase less than 3.2m)
Washing efficiency 55-60 cars/h
Small vertical brush 4
large vertical brush 4
overhead brush 1
Water consumption 95-140L/car
Power consumption 0.6kw/car
Shampoo consumption 7ml/car
Water wax consumption 12ml/car

Advantages

  • The galvanized frame of the tunnel car wash system is both solid and durable.
  • The high pressure wash system improves the washing performance.
  • The foam and water wax proportioning system is easy to use.
  • Four groups of powerful dryers.
  • The liquid automatic siphon is simple to operate.
  • Multiple cleaning and long term washing completely washes the car, and ensures a superior washing performance.
  • The PLC fully-automatic computer control system ensures a higher security.
  • A one-click washing method is easy to operate.
  • The contour-following drying system creates a better drying performance.
  • The built-in self-diagnosing system will recognize and remove any mechanical obstacles during the washing process

Configurations

Standard Devices Optional Devices
Brush system Undercarriage wash system
Hot dip galvanized frame High-pressure water devices
Shampoo spray system
Water wax spray system
Contour-following drying system
Car entry guide rail apparatus
Equipment data intellectualization
Self-diagnose system

Product features

PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional CleaningPLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning

washing process

PLC Controlled Risense Automatic Car Washing Machine CC-690 for Professional Cleaning
