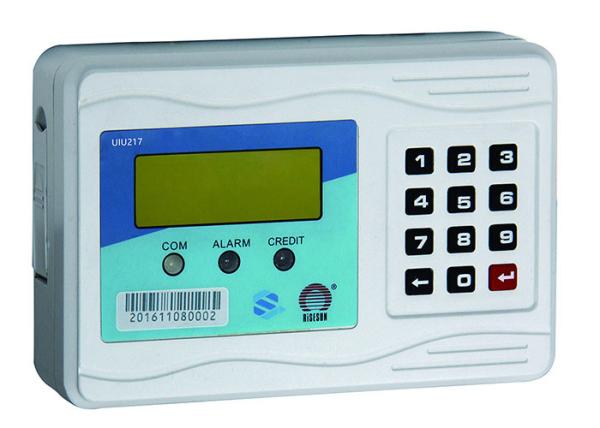

DTZY217 Three Phase STS Keypad Prepaid Meter

General introduction

DTZY217 Three Phase STS Keypad Prepaid Meter has the functions such as metering, monitoring, alarm, display, communication and load control, etc. It adopts STS standard encryption algorithm to exchange the information based on TOKEN, the meter is featured with high metering accuracy, high level security, strong compatibility, easy operation, etc.

Main functions

• Support UIU
• TOU

Four tariffs; two sets of time zone tables; two sets of time period tables; support public holidays and weekends

• Step tariffs
• Friendly power supply management

Support emergency credit

• Events logs

Detecting and recording events such as current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, overvoltage, under voltage, etc.

• Anti-tamper

Detecting current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open etc, at the same time the meter can disconnect power supply when the tampers occur which are configured.

• Audio and visual alarm

Current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open can be alarmed which are configured.

• Disconnection /reconnection

Detecting the customer's load status, it can alarm or disconnect the power supply when overload happens.

• Communication interface

Optical port and RS485 interface are available; PLC, RF, GPRS or twist-wire interface is optional.

• UIU interface

PLC, RF or twist-wire is optional.

Technical specifications

Our company

Zhejiang Risesun Science and Technology Co., Ltd.(Abbreviated as Risesun.The former: Wenzhou City Risesun Electrical Meter Co., Ltd., established on Nov. 26, 1997.)is a famous professional supplier of energy measuring meters and acquisition systems of consumed energy information, and it is a national level high and new technology enterprise with the business range of research and development, production, sale and after-sales service for energy measuring meters and acquisition systems of consumed energy information. Its main products cover smart energy meter, IC card prepaid energy meter, din rail energy meter, STS keypad prepaid energy meter, multifunction energy meter, acquisition terminal of special transformer, data acquisition system, charging pile of electric auto, metering box and etc. It is one of the companies with the most technical influence and development potential in the electric energy metering instrument industry of China.

Risesun has formally carried out the globalization management strategy. Its sales turnover has increased steadily year by year, with sales reaching 3 billion yuan in the past three years. Its products and solutions have already been successfully applied in a number of countries and regions like Nepal, Vietnam, Pakistan, India, Bangladesh, Philippines, Peru, Cuba, Columbia, Ecuador, Brazil, Zimbabwe, Tanzania, Ethiopia, Russia and etc., and have obtained the unanimous praises from customers. A main source of its sales revenues in the future will be from the international trade business.
Today's Risesun, just as a round of Oriental Sun, is rising and creating greater glories with the help of the national macroscopic policy good solution and its research and development potential.
