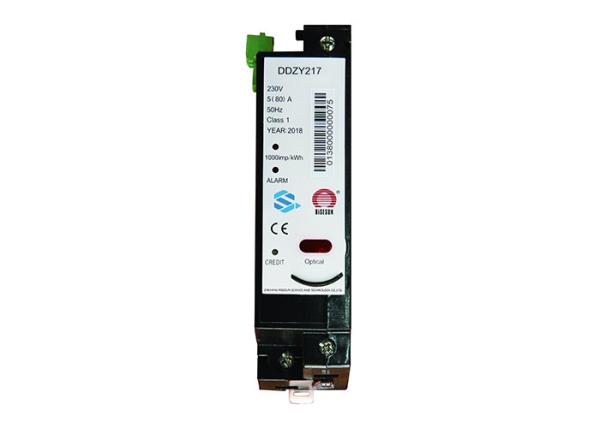

Single Phase high metering accuracy STS Split Type Prepaid Meter

General introduction

1) Advantages of the meter are high metering accuracy, high level security, strong compatibility, easy operation, etc.

2) Single Phase high metering accuracy STS Split Type Prepaid Meter has the functions such as communication and load control,metering, monitoring, alarm, display, etc.

3) The meter adopts STS standard encryption algorithm to exchange the information based on TOKEN.

4) Work with UIU.

Technical specifications

Main functions

• UIU communication interface: PLC, RF or twist-wire is optional.
• Friendly power supply: Support emergency credit.
• Events logs: Detecting and recording events such as current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, overvoltage, under voltage, etc.
• Anti-tamper: Detecting current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open etc., at the same time, the meter can disconnect power supply which is configurable when the tampers occur.
• Audio and visual alarm: Audio and visual alarm which can be configurable can be for power flow reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, etc.
• Load control: Detecting the customer's load status, it can alarm or disconnect the load when verload.
• Communication interface: Optical port and RS485 interface are available.
• Step tariffs
• TOU: Four tariffs; two sets of time zone tables; two sets of time period tables; support public holidays and weekends

Prepaid Power Vending Management System

System introduction
Prepaid power vending management system is based on power vending management software and database with the devices of computer, charging machine, prepaid meters, printers and security modules, etc. The system can configure the meter parameters, manage power vending and electricity consumption, it can report and manage data with effective safety. The system includes remote prepaid, local prepaid and postpaid functions. The system integrates metering, electronic, automation and computer technology to realize the modernization of energy metering, load control, charging, etc.

System Architecture
