47~860MHz catv 1310nm 20mW optical transmitter for cable TV indoor and outdoor
47~860MHz catv 1310nm 20mW optical transmitter for cable TV indoor and outdoor
47~860MHz catv 1310nm 20mW optical transmitter for cable TV indoor and outdoor
47~860MHz catv 1310nm 20mW optical transmitter for cable TV indoor and outdoor
Specifications
Brand Name :
RITEL
Model Number :
47~860MHz catv 1310nm 20mW optical transmitter for cable TV indoor and outdoor
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Price :
$100.00~$500.00
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000pcs per months
Delivery Time :
5~7 days
Packaging Details :
Carton, box
Material :
Aluminum 19" !U rack
Front panel :
front LED display
color :
grey
AGC :
with AGC
Description

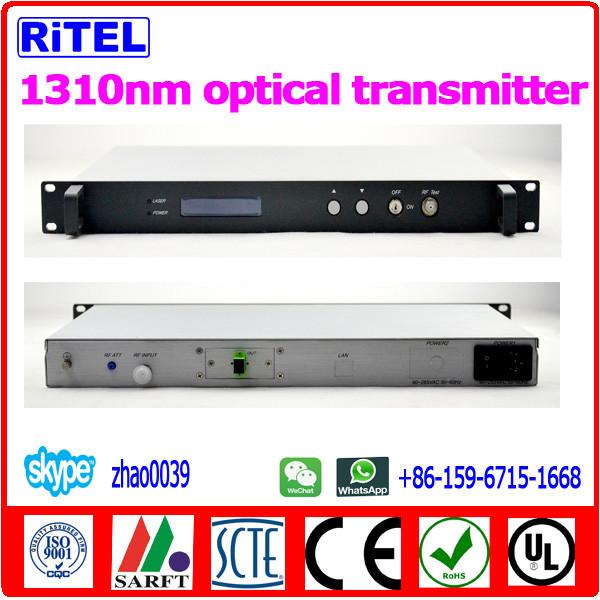

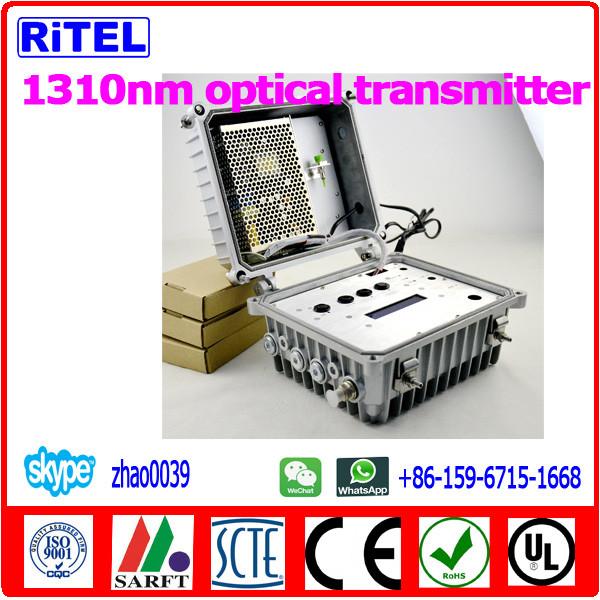

47~860MHz 1310nm optical transmitter for cable TV
Features
> ORTEL, AOI, XT and other laser.

> Pluggable module design.

> AGC function.

> SNMP management.

Applications
CATV Systems
Specifications
Items Unit Parameter Remark
Optic Parameter
Laser model DFB
Optical wavelength nm 1310±10
Optical modulation Intensity Mod
Optical output power mW 4~28 　
Optical connector form SC/APC FC/APC
RF Parameter
Frequency range MHz 45~862
Flatness dB ±0.75 GY/T143-2000 6.2.4
RF input level dBuV 78~88 　
RF retun loss dB >16 47~550MHz
>14 550~862MHz		 GB/T11381.1
4.2.2.2.5
Impedance Ω 75 　
Link
CNR dB ≥52.0 GY/T143-2000 6.2.3.5
CTB dB ≥65.0 GY/T143-2000 6.2.5
CSO dB ≥65.0 GY/T143-2000 6.2.5
SBS dB ≥16.0 13～19dB adj.
General
Network Interface 　 RJ45 　
Power supply V 90~265AC
power consumption W ≤50 Single power
Operating temperature C 0~50 ATC
Storage temperature C -20~85
Relative humidity % 20~85
Dimension mm 483*440*44 19"*14.5"*1.75"
Weight Kg 4 8.8lb
Order information

ROT-8604: 4mW, AGC, SC or FC, SNMP, AC100~230V, 19" 1U

ROT-8610: 10mW, AGC, SC or FC, SNMP, AC100~230V, 19" 1U

ROT-8616: 16mW, AGC, SC or FC, SNMP, AC100~230V, 19" 1U

ROT-8620: 20mW, AGC, SC or FC, SNMP, AC100~230V, 19" 1U
