catv_matv 5-1200mhz outdoor splitter/splitters DS-2,DS-3UB,DC-108 for DOCSIS3.1 network compliant with scte guidelines
catv_matv 5-1200mhz outdoor splitter/splitters DS-2,DS-3UB,DC-108 for DOCSIS3.1 network compliant with scte guidelines
catv_matv 5-1200mhz outdoor splitter/splitters DS-2,DS-3UB,DC-108 for DOCSIS3.1 network compliant with scte guidelines
catv_matv 5-1200mhz outdoor splitter/splitters DS-2,DS-3UB,DC-108 for DOCSIS3.1 network compliant with scte guidelines
catv_matv 5-1200mhz outdoor splitter/splitters DS-2,DS-3UB,DC-108 for DOCSIS3.1 network compliant with scte guidelines
catv_matv 5-1200mhz outdoor splitter/splitters DS-2,DS-3UB,DC-108 for DOCSIS3.1 network compliant with scte guidelines
Specifications
Brand Name :
RITEL
Model Number :
catv_matv 5-1200mhz outdoor splitter/splitters DS-2,DS-3UB,DC-108 for DOCSIS3.1
Certification :
CE, UL, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
$3.80~$6.00/PC
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
10k per months
Delivery Time :
Depends on quantity
Packaging Details :
Carton, box
OEM, ODM :
Available
Shipment :
DHL, UPS, TNT, FedEx, By air, By sea
FTA(Free To Air) :
Yes
Type :
Digital & analog
High Definition :
Yes
Materials :
Zinc alloy, brass body
Protection :
6KV
Description
CATV/MATV/SMATV 5-1200MHz Outdoor Splitter/Tap DS-2,DS-3UB,DC-108 for DOCSIS3.1 network, compliant with SCTE guidelines
Features:

1. 5-1200MHz Bandwidth

2. 15 Amp Current Capacity

3. Blocking Capacitors on the "F" ports for Extended Surge Resistance

4. Aluminum Alloy Housing Used for Corrosion Resistance

5. Double Polyurethane Coating for Greater Weather Protection

6. Operational Temperature Range -40°C to +60°C (-40°F to +140°F)

7. Power Passing Option CB: Continuous through Signal w/o Faceplate

8. 6KV Surge WithstandCombination Wave, 3000 Amp

9. Easily Interchangeable 2/4 port Faceplates

10.Aerial or Pedestal Installation

11.Compliant with SCTE Guidelines

12.Mainline Splitters, Couplers, and Power Inserters Available

Specification:
Application:

>CATV
>DOCSIS3.1

Order Information:
DS Splitter, all port 15A power passing

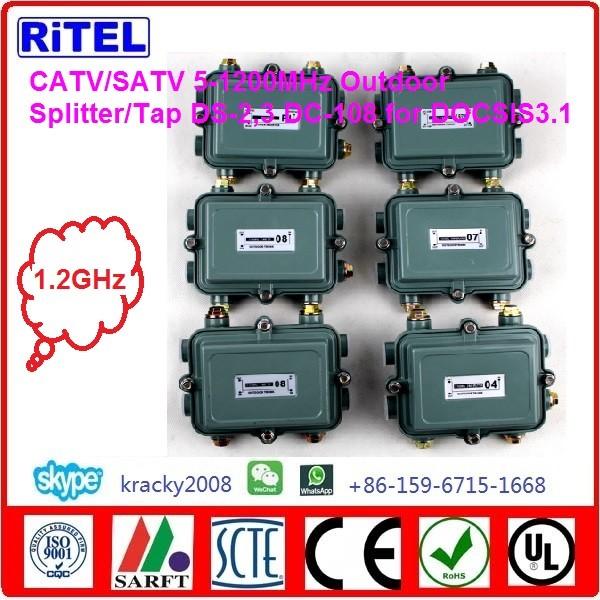

DS-2: 5-1218MHz, 2-way splitter, 5/8-32UNEF, zinc-alloy body, powder spray finished.

DS-3UB: 5-1218MHz, 3-way splitter, unbalanced,5/8-32UNEF, zinc-alloy body, powder spray finished.

DC Directional Coupler, all port 15A power passing

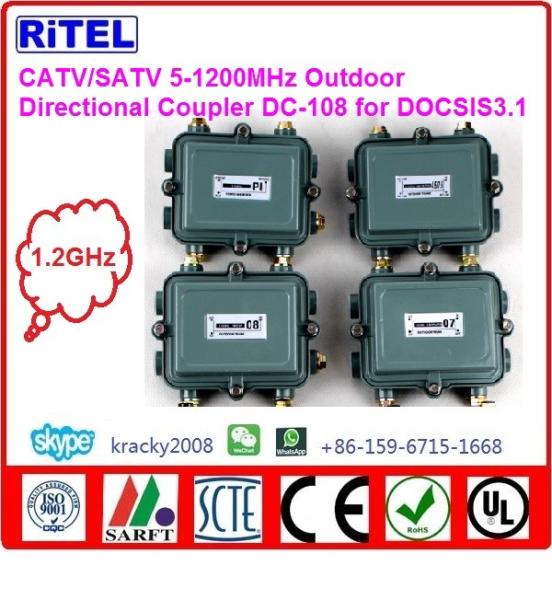

DC-108: 5-1218MHz, 1-tap, 8dB, 5/8-32UNEF, zinc-alloy body, powder spray finished.
DC-112: 5-1218MHz, 1-tap, 12dB, 5/8-32UNEF, zinc-alloy body, powder spray finished.
DC-116: 5-1218MHz, 1-tap, 16B, 5/8-32UNEF, zinc-alloy body, powder spray finished.
DP Power Inserter, all port 15A power passing
DP-15: 5-1218MHz, IN/OUT/PWR, 15, 5/8-32UNEF, zinc-alloy body, powder spray finished.
DT Multi-tap, IN-OUT 15A power passing

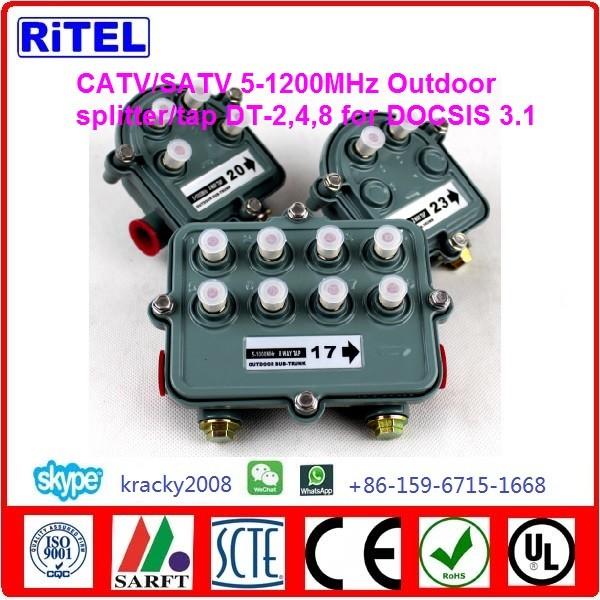

DT-2xx: 5-1218MHz, 2-TAP, 5/8-32UNEF and F, zinc-alloy body, powder spray finished.

DT-4xx: 5-1218MHz, 4-TAP, 5/8-32UNEF and F, zinc-alloy body, powder spray finished.

DT-8xx: 5-1218MHz, 8-TAP, 5/8-32UNEF and F, zinc-alloy body, powder spray finished.

OEM/ODM/EMS is available.
