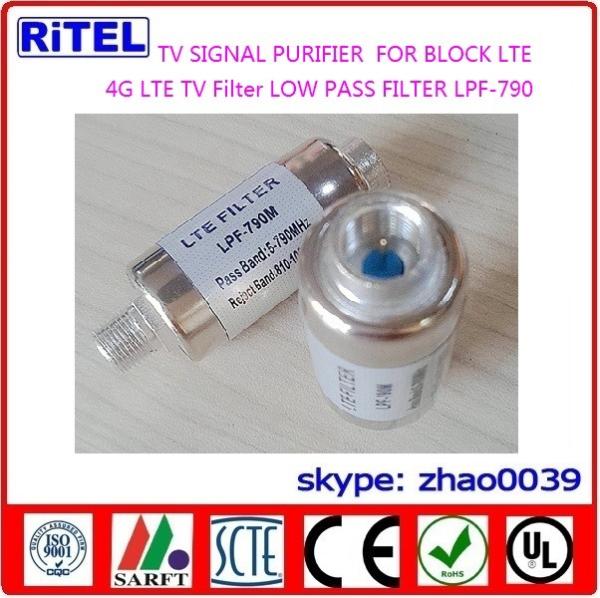

4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector
4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector
4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector
4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector
Specifications
Brand Name :
RITEL or OEM
Model Number :
4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector
Certification :
CE, UL, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
$1.20~$3.20/PC
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
1000pcs per months
Delivery Time :
Depends on quantity
Packaging Details :
Carton, box
Description
CATV/MATV/SMATV 4G LTE LOW PASS FILTER LPF-790 For Blocking LTE signal
1.Tublar bronze house, tin-plated
2.F & IEC type male and female connector
3.All solutioon, incl. EURO, AMERICA, AUSTRALIA
4.High rejection for clean signal
4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector
4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector

Description

The 4G LTE filter is used to block 4G LTE signal so that it will not interfere Digital terrestrial television (DTT) reception.

As we know Digital Terrestrial Television operates in UHF frequency band from 470MHz to 790MHz. LTE (Long Term Evolution) technology developed for high speed data internet connection operates in the band from 790MHz to about 860MHz. This leads to interference in the DTV channels which are close to LTE frequency band.

Features:

*UPGRADED LTE FILTER TECHNOLOGY – Newest filters 4G signal for a clear channels; Solve the problem of TV signal interference.

*EASY INSTALLATION – fits any TV antenna or antenna amplifier.

*Filters all LTE Signal Noise – Our LTE filter removes all noise caused by 4G cellular signals cellular interference.

*Made of Premium Materials – The shell is made of all metal, nickel-plated; Built-in filter chip.

Specification:

PARAMETER BANDWIDTH SPECIFICATIONS
Insertion loss 5-740MHz 0.5 dB(typ)/1.0dB (max)
740-780MHz 1.0 dB(typ)/2.0dB (max)
780-790MHz 3.0 dB(typ)/3.5dB (max)
Return loss 5-790MHz 14dB(typ)/12(min)
Stop Band 810-1000MHz
Rejection band loss 810-815MHz 40dB(typ)/35dB (min)
815-1000MHz 50dB(typ)/45dB (min)
Impedance 75 ohm
Connector Type F or IEC available, male to Female
Dimensions 20.5 (D)* 58(L) mm F connector 20.5 (D)* 64(L) mm IEC connector
Weight 35g

4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector

4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector

4G LTE TV FILTER LOW PASS FILTER LPF-790 For 4G Interference, TV signal purifier, IEC connector

4G LTE LOW PASS FILTER LIST

MODEL PASS BAND
LPF2L-600M 5-600MHz
LPF2L-650M 5-650MHz
LPF2L-670M 5-670MHz
LPF2L-694M 5-694MHz
LPF2L-698M 5-698MHz
LPF2L-710M 5-710MHz
LPF2L-750M 5-750MHz
LPF2L-774M 5-774MHz
LPF2L-790M 5-790MHz
LPF2L-1002M 5-1002MHz

(EURO, AMERICA, AUSTRALIA SOLUTION IS AVAILABLE)
