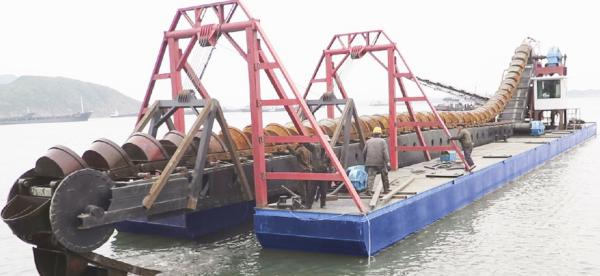

Customized Bucket Chain Dredger 250 Cubic Meter Per Hour 1-25m Dredging Depth
Customized Bucket Chain Dredger 250 Cubic Meter Per Hour 1-25m Dredging Depth
Specifications
Brand Name :
YONGDELI
Model Number :
YLBCD-250
Certification :
SGS or BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/year
Delivery Time :
50 working days
Packaging Details :
nude packing by 40' HQ shipping container
colour :
customized
place or origin :
Shandong province,China
Engine brand :
weichai,cummins or caterpillar
shipping type :
by 40' HQ container
Material :
Q235B steel plate
Dredging depth :
1-25m
Sand deal capacity :
250 cubic meter per hour
Total engine power :
108-200kw
Water requirements :
250-500 cubic meter per hour
Description

Low price and high quality 250 cubic meter per hour bucket chain sand dredging machine for river dredging

1.WORKING PRINCIPLE

Usually the draft of the bucket chain sand( gold/diamond) dredger's draft is less than 1 meters.So it is very easy for them to get engough floating force to work in the water. When it works, the operators will slowly put down the dreding arm into some depth.The buckets rotate around the underwater dredgeing wheel, scooping up the soilds in the riverbed, then dump them into the classifying trommel , which will be covered with single layer or double layermesh, will separate off the gravels, clay balls, branches and grass from the river sand.

The discharge system could be divided into single-discharge, multi-conveyor belts or chute.

The river sand will be discharged to the nearby transport barge or the river bank. We can design to discharge the tailing stones into the dredging pool or the river bank based on customer's requirements.

2.ADVANTAGES

a.Widely used in most terrains. If the river or lake has more bigger stones,Then bucket chain sand dredger is one ideal choice

b.Low purchasing cost,quick economic return,large work capacity.

c.Easy operation,installation,maintenance.

d. 2 persons can operate one whole set of bucket chain type dredger.

e. long lifespan and low maintenance cost .

3.TECHINICAL SPECIFICATION

MODEL Dredge Depth(m) Capacity(m3/h)

Power

(KW)
YLBCD-100 1-25 100 65-100
YLBCD-150 1-25 150 82-120
YLBCD-200 1-25 200 97-150
YLBCD-250 1-25 250 108-200

4. COMPANY INFORMATION

Qingzhou Yongli Mining And Dredging Machinery Co.Ltd, located in Qingzhou city--one of the Nine Ancient Cities in China ,is a leading company of sand mining equipments.

We are the professional manufacturer who has been dedicated in R&D ,designing ,producing,assembling and testing service.

In 1999, we developed the iron sand dredging machinery .

In 2006,we started to manufacture the cutter suction dredger .

In 2008,we based on the nine terrains in Africa,Southeast Asia and China domestic the zirconium ,diamond ,gold mining machinery (pulsating sluice box ,centrifugal concentrator ,jig,shaking table)were developed adopting foreign technology ,and won high praise of customers throughout the world.

Nowdays we have more than 10 years experience of export. Our products are widely exported to and widely used in Africa, South America and Aisa and other regions. Yongli dredger, Your deserve it!

5. REQUSTED FOR REPLY

a. how many meters for the dredge depth?

b. How many cubic meter of sand do you want to deal with per hour?

c. the sand and stone percentage ratio?

d. which kind of engine brand would you prefer, weichai or cummins?

6. Others

Delivery period 50 working days
Payment terms T/T or 100% irrevocable letter of credit at sight
Package paulin
Port of loading Qingdao seaport,Shandong Province,China
Warranty 1 year except the wear spare parts.
After-sales service installtion the dredger,train the operators, maintenance

7. SUCCESSFUL CASES

Customized Bucket Chain Dredger 250 Cubic Meter Per Hour 1-25m Dredging Depth
