Specifications
Brand Name :
DGHELING
Model Number :
MJ5388-U011-HRN1
Certification :
ISO9001 , RoHS , UL , CE , REACH
Place of Origin :
China
MOQ :
1000
Price :
Preferential & Competitive
Payment Terms :
T / T， Paypal
Supply Ability :
1,000K Pieces Per Month
Delivery Time :
Stock or 2 weeks
Packaging Details :
Tray / Tape & Reel as your request
Product Name :
Right Angle RJ45 Connector
Mounting Type :
THT Mounting
Orientation :
Right Angle
Positions / contacts :
8P8C
Housing Color :
Blue
Shielding :
Unshielded
Latch Orientation :
Tab Up
Usage :
For networking and telecom equipment
Description

8 Positions Blue Right Angle RJ45 Connector Unshielded Modular Network PCB Jack

Description:

  • Model number: MJ5388-U011-HRN1
  • Series: Right Angle RJ45 Jack
  • Gender: RJ45 Female Connector
  • Positions/ loads of contacts : 8P8C ( RJ45 , Ethernet )
  • Mounting type : Through hole
  • Latch Orientation: Right Angle (Side Entry)
  • LED indicator : None

Specfication:

Part Number:　 MJ5388-U011-HRN1
Product Family: Right Angle RJ45 Connector
Overview: RJ45 1x1 8P8C Right Angle RJ45 Connector Blue Color
Description: 8 core 1x1 ports Right Angle RJ45 Jack connector, Unshielded
　 Operating temprature range: -40℃-70℃　
　　 　　　　　　
General
Series: Right Angle RJ45 Connector Jack
Numbers of ports: 1x1　
Orientation: Right Angle ( Side entry)　
Pin type: THT solder　
Positions/ Loaded contacts 8P8C　
Latch: Tab up　
LEDs: None
Shielded: None　
Jack Height: 13.4mm　
Magnetic: None　
Performance category:

Cat 5　
Power over Ethernet(PoE): Non-PoE　　　　　
Physical
Color-Resin: Blue
Durability(mating cycles max): 750　
Material Metal: Phosphor bronze　
Resin: Liquid crystal polymer　
Plating termination: Gold Flash　
Plating min- mating: 6u"/15u"/30u" optional　
Net Weight: TBA　
PCB: FR4　
PCB locator: Yes　
PCB retention: None　
PCB retaining post: T-post　
PCB Thickness- Recommended 1.6mm　
Packaging type: Tray　
Temperature range: -40℃-70℃　
RoHS compliant YES, RoHS AND Halogen-Free　　　
Electrical
Current rating: 1.5AMPS　
Voltage rating: 125V AC　
Insulation Resistance: 500MΩ mini　
Withstand voltage: 1000V RMS 60Hz　
Contact Resistance: 50mΩ Max　
Grounding to PCB: YES　
Grounding to Panel: YES　

Documents:

*** CLICK HERE TO DOWNLOAD THE DRAWING

HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

  • Internet Data Center
  • Web Servers
  • Switches Hubs
  • Work Station
  • Network Information Center
  • Mother board
  • Unmanaged Switches
  • Consumer devices

Product Images :

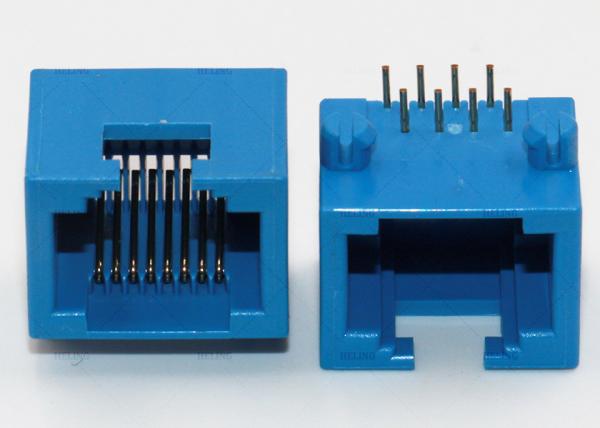

8 Positions RJ45 Connector Right Angle Blue Color For Networking / Telecom Equipment

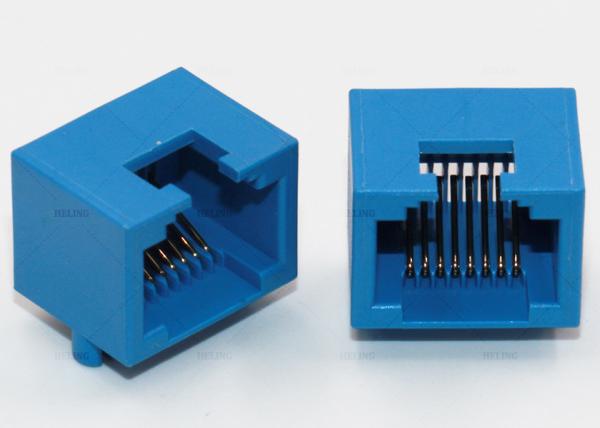

8 Positions RJ45 Connector Right Angle Blue Color For Networking / Telecom Equipment
