Specifications
Brand Name :
DGHELING
Model Number :
MJ882-B111-HPPD1
Certification :
ISO9001 , RoHS , UL , CE , REACH
Place of Origin :
China
MOQ :
3000
Price :
Preferential & Competitive
Payment Terms :
T / T， Paypal
Supply Ability :
1,000K Pieces Per Month
Delivery Time :
Stock or 4 weeks
Packaging Details :
Tray / Tape & Reel as your request
Series :
Vertical RJ45 Jack
Numbers of Ports :
1
Port Matrix Configuration :
1x1
Orientation :
Vertical
Positions/Loaded Contacts :
8P8C
Latch :
Tab up
Pin Type :
THT Solder
RoHS Compliant :
Yes, RoHS and Halogen-Free
Description

THT / DIP Mounting Vertical RJ45 Jack Ethernet Connector for Ethernet Router

Overivew:
- Model Number : MJ882-B111-HPPD1
- Latch directioin: Tab Up
- Orientation : Vertical
- Numbers of Ports : 1 X 1
- Shielding : Shielded
- Numbers of positions / contacts : 8P8C
Documents:
*** CLICK HERE TO DOWNLOAD THE DRAWING


Heling operates and specializes in the provision of Vertical RJ45 Jack networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of Vertical RJ45 Jack for your data and signal transmissions.

Our Vertical RJ45 Jack are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with transformers/EMI Finger/LED options.

Our Vertical RJ45 Jack are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.

THT / DIP Mounting Vertical RJ45 Jack Ethernet Connector for Ethernet Router
Part Number:　MJ882-B111-HPPD1
Product Family:Vertical RJ45 Jack
Overview:Vertical RJ45 Jack 1x1 ports 8P8C
Description:
　
　　		1x1 ports RJ45 connector, Vertical, Tab up,Shielded
Operating temprature range: -40℃-70℃　
　　　　　　
General
Series:Vertical RJ45 Jack
Numbers of ports:1x1　
Orientation:Right angle(side entry)　
Pin type:THT solder　
Positions/ Loaded contacts:8P8C　
Latch:Tab up
LEDs:NO
Shielded:YES　
Jack Height:12mm　
Magnetic:None　
Performance category:None　
Power over Ethernet(PoE):Non-PoE　　　　　
Physical
Color-Resin:Black　
Durability(mating cycles max):750　
MaterialMetal:Phosphor bronze　
Resin:Liquid crystal polymer　
Plating mating:Gold over Nickel　
Plating termination:Gold Flash　
Plating min- mating:1u"/3u"/6u"/15u"/30u"/50u" optional　
Net Weight:TBA　
PCB:FR4　
PCB locator:Yes　
PCB retention:None　
PCB retaining post:T-post　
PCB Thickness- Recommended1.6mm　
Packaging type:Tray　
Temperature range:-40℃-70℃　
Turns Ratio RX:/
Turns Ratio TX:/　
Configuration RX:/
Configuration TX:/
RoHS compliant:YES, RoHS AND Halogen-Free　　　
Electrical
Current rating:1.5AMPS　
Voltage rating:125V AC　
Insulation Resistance:500MΩ mini　
Withstand voltage:1000V RMS 60Hz　
Contact Resistance:50mΩ Max　
Grounding to PCB:YES　
Grounding to Panel:YES　

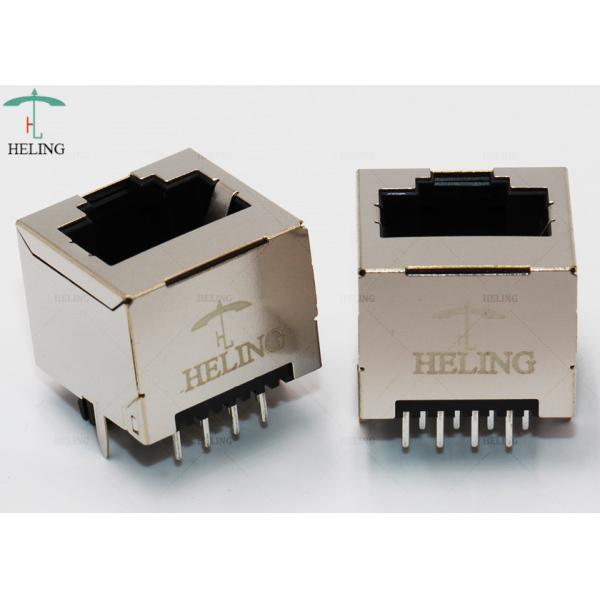

Product Image :
