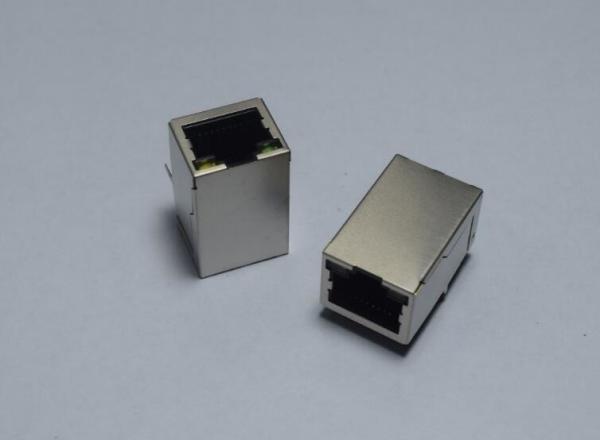

Top Entry Vertical RJ45 Female Jack , RJ45 PCB Mount Connector For Hub / PC Cards
Top Entry Vertical RJ45 Female Jack , RJ45 PCB Mount Connector For Hub / PC Cards
Top Entry Vertical RJ45 Female Jack , RJ45 PCB Mount Connector For Hub / PC Cards
Top Entry Vertical RJ45 Female Jack , RJ45 PCB Mount Connector For Hub / PC Cards
Specifications
Brand Name :
CSAK
Model Number :
SK07-111071ENL
Certification :
RoHs , UL , SGS
Place of Origin :
GuangDong
MOQ :
300pcs
Price :
Price to be negotiated in person
Payment Terms :
T/T
Supply Ability :
800,000pcs/Month
Delivery Time :
24-30 work days
Packaging Details :
There are 1000PCS products in the Package Box
Feature :
Female Connector
Shielding shell plating :
Nickel
Voltage Rating :
125vac
Length :
21.59cm
Speed :
100Base-T
Type :
Transformer Module
Description

IEEE 802.3 Vertical Female RJ45 Jack /Connector with Transformer Module

Features

  • Used for hub, PC cards, switches, routers, PC main boards, SDH, PDH, IP phones and xDSL modes
  • Designed to supports application, such as (SoHo ADSL modems), LAN on motherboard (LOM), hub and switches
  • Length: 21.59cm (0.85 inch)
  • Meets or exceeds IEEE802.3 standards for 10/100/1000M Base-T/TX
  • Connector materials:
  • Housing: thermoplastic UL94V-0
  • Contact/shield: copper alloy
  • Compliant with the RoHS Directive (PB-free)
  • Shield plating: nickel
  • Contact plating: selective gold six micro-inches minimum in contact area

Vertical RJ45 Connector

Material Specification

Housing ABS RESIN(UL94V-0) / PBT(UL94V-0)
PA46(UL94V-0)/PA66(UL94V-0)/LCP(UL94V-0)
Spring Wire 0.45mm Dia Phosphor Bronze Gold Plating over Nickel
0.35mm Thickness Phosphor BRONZE Alloy Selective Gold plating over Nickel
Shielding 0.2-0.35mm thickness Copper Alloy with Nickel Plated
Gold plating 3u inch,6u inch,15u inch,30u inch

Descriptions:

10/100Base-TX RJ45 single port (1x1) Vertical with LEDs with top entry.

Integrated magnetics connector (ICM),

designed to support applications, Such as Network Interface Cards (NIC), LAN-on Motherboard (LOM), and

PC applications.

Features and Benefits:

* Single port (1X1) Vertical RJ45 with internal magnetics.

* RoHS-6 peak wave solder temperature rating 260 0C.

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

* Internal magnetics are 100% electrically tested for HI-POT and functionality.

Mechanical
1. Insertion Force:2.2KG.F max
2. Retention Strength:7.7KG.F min between jack and plug
3. Durability:600 mating cycles min
