Vertical Entry Female RJ45 Lan Jack , Right Angle Rj45 Connector With Integrated Magnetics
Vertical Entry Female RJ45 Lan Jack , Right Angle Rj45 Connector With Integrated Magnetics
Vertical Entry Female RJ45 Lan Jack , Right Angle Rj45 Connector With Integrated Magnetics
Vertical Entry Female RJ45 Lan Jack , Right Angle Rj45 Connector With Integrated Magnetics
Specifications
Brand Name :
XINGGE
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
2000 Piece/Pieces
Payment Terms :
T/T, L/C, D/A, D/P, Western Union,PAYPAL
Supply Ability :
500000 Piece/Pieces per Month
Delivery Time :
2 weeks
Packaging Details :
tray
Product Name :
Single Gigabit rj45 LAN jack
Voltage Rating :
125 V AC(RMS)
Application :
Switch,transceiver
Contact Plating :
1'-50u'
Housing Material :
PBT Polyester
Rj45 Port :
1x1
Description

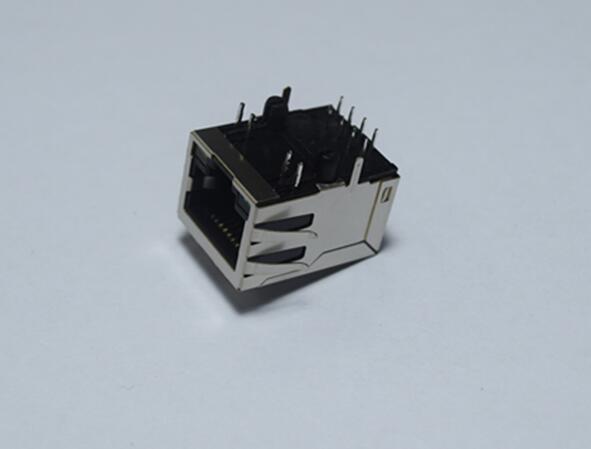

Single Gigabit Right Angle / Vertical Entry Female RJ45 LAN Jack Integrated Magnetics

Specifications:

Electrical Mechanical
Current rating: 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120V AC 4 contacts---500g
Insulation resistance: 500MΩ Min 6 contacts---750g
Withstand voltage: AC 1500 V RMS 50Hz or 60Hz 1 Min 8 contacts---900g
Contact resistance: 20mΩ Max 10 contacts---1050g
Retention strength: 7.7Kg between jack and plug
Durability: 750 mating cycles mini
Material
Housing: 1) glass filled PA66(ul 94v-0)
2) glass filled PA46(ul 94v-0)
3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
2) 0.35mm thickness phosphor bronze alloy
selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating : 3μ″,6μ″,15,μ″,30μ″,50μ″
Working temperature -110


Material


Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Shield: Copper alloy with nickel plating
LED: Tin plating on LED tail. Epoxy lens.

Application

LED TV, SMart TV , STB ,computer , Modem,Router, net splitter and so on...

socket rj45


Mechanical

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Length:18.75mm
