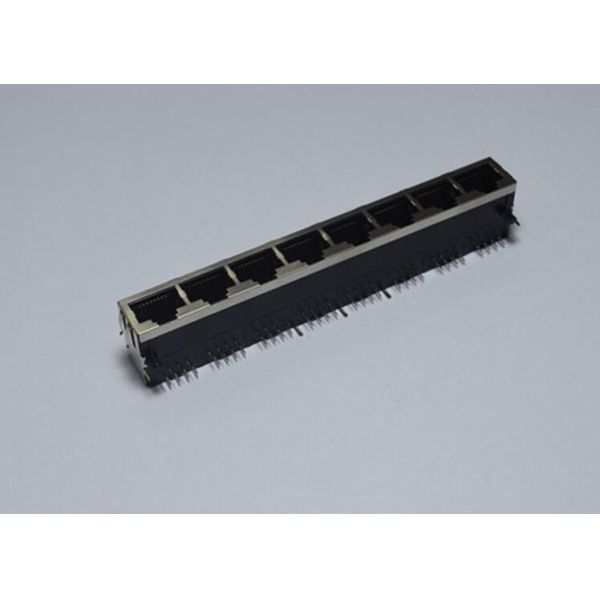

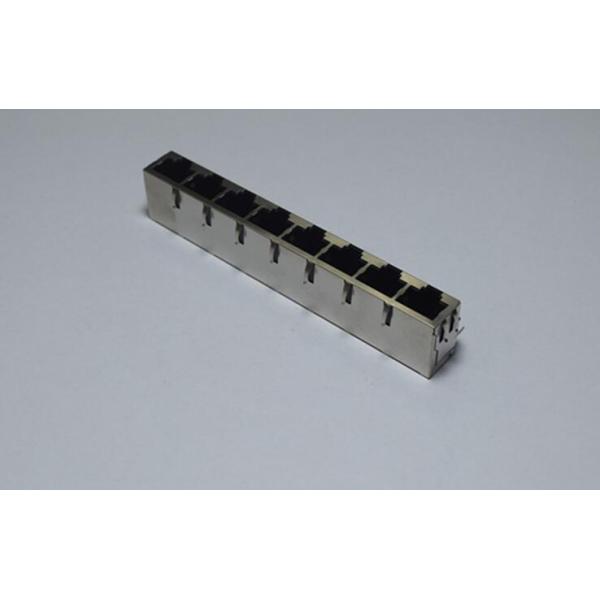

90 Degree Side Entry RJ45 Multiple Port Connectors 8 Port Network Jack Panel Mount
90 Degree Side Entry RJ45 Multiple Port Connectors 8 Port Network Jack Panel Mount
90 Degree Side Entry RJ45 Multiple Port Connectors 8 Port Network Jack Panel Mount
90 Degree Side Entry RJ45 Multiple Port Connectors 8 Port Network Jack Panel Mount
Specifications
Brand Name :
CSAK
Model Number :
SK02-811008NL
Certification :
RoHs , UL , SGS
Place of Origin :
GuangDong
MOQ :
300pcs
Price :
Price to be negotiated in person
Payment Terms :
T/T
Supply Ability :
1000,000pcs/Month
Delivery Time :
24-30 work days
Packaging Details :
10pcs/Tray
Name :
Side Entry Multiple Port RJ45 Connector
Port :
8 port
LED :
Green/Yellow
Gender :
Rj45 receptacle
Used :
Modem, Hub, Switch
Feature :
Shielded RJ45 network port
Description

90 Degree Side Entry RJ45 Multiple Port Connectors 8 Port Rj45 Panel Mount

Material specifications:

  • Plastic core: Glass fiber filler PBT Black(UL94V-0)
  • Contact: gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal: Phosphor bronze ,Tail-Tin over Nickl
  • Housing: Phenolic, PBT Black (UL94V-0)
  • Metal shell: Copper Alloy ,Tin and Nickel plated


FEATURES AND BENEFITS


◆ ROHS PEAK WAVE SOLDER TEMPERATURE RATING 260°C±5°C.
◆ RJ45 1*8 8-PIN WITH INTERNAL MAGNETIC；
◆ SUITABLE FOR CAT5 AND CAT6 FAST ETHERNET CABLE OR BETTER UTP.
◆ INTERNAL MANETICS:100%ELECTRONICALLY TESTED FOR HI POT AND

FUNCTIONALITY

◆ MEETS IEEE802.3 SPECIFICATION AND 350uH MINIMUM OCL WITH 8mA
BIAS CURRENT.
◆ HIGH PERFORMANCE FOR MAXIMUM EMI SUPPRESSION.
TEMPERATURE PERFOMANCE
◆ STORAGE TEMPERATURE RANGE: 0°C TO +70°C.
◆ OPERATION TEMPERATURE RANGE:-25°C TO +85°C.

MATERIAL SPECIFICATION


◆SHIELD: BRASS,0.2mm THICKNESS WITH NICKEL PLATED.
◆HOUSING: PBT(30% GLASS FIBER,UL94V-0).
◆SOLDERING MATERIAL:99.3%Sn0.3%Cu.
◆CONTACT: PHOSPHOR BRONZE,0.35mm THICKNESS,HARD GOLD PLATED OVER

Main use:

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...
  • PC motherboard

Specifications

haracteristics: 1)RJ45 Connector with integrated transformer/common mode choke
2)Available in SMD, THT and THT with USB
3)350µH min. OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range -40°C to +85°C available
6)PoE/ PoE+
2. Operation/Application: 1)xDSL Modems
2)Embedded PC
3)LAN Applications
4)Hub, Router, Switches

90 Degree Side Entry RJ45 Multiple Port Connectors 8 Port Network Jack Panel Mount90 Degree Side Entry RJ45 Multiple Port Connectors 8 Port Network Jack Panel Mount
