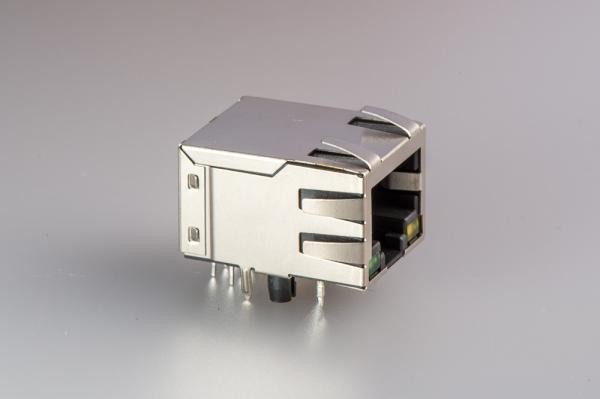

Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port
Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port
Specifications
Brand Name :
XINGGE
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
Guangdong, China (Mainland)
MOQ :
500 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2,000,000pcs/Month
Delivery Time :
24-30 work days
Packaging Details :
80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
LED color :
yellow, gree, red, blue, double color option
Mounting Type :
Insert Plate 10 / 100 / 1000 MB
Orientation :
90 degree, side enter
Pin Number :
8 Pin
Port :
Single Port
terminal :
phosphor copper
Description

Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port

Electrical
1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
2. High performance for maximum EMI suppression
3. 350uH minimum OCL with 8mA bias current
Current rating 1.5A
Voltage rating 125V AC
Insulation resistance 500MΩ min
Contact resistance 30MΩ max
Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min
Insertion loss -1.2dB Maximum at 100kHz-100MHz
Return loss -18dB minimum at 1MHz-30MHz
-14dB minimum at 30MHz-60MHz
-12dB minimum at 60MHz-80MHz
Common mode rejection -30dB minimum at 1MHz-100MHz
Cross talk -30dB minimum at 1MHz-100MHz
Mechanical
Insertion force 2 contacts 350g
4 contacts 500g
6 contacts 750g
8 contacts 900g
10 contacts 1050g
Retention strength 7.7KG.F min between jack and plug
Durability 800 mating cycles min
Material
Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
Contact wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
Shield 0.20-0.25mm thickness brass with tin plated
Gold plating 3u", 6u", 15u", 30u", 50u"
LED specifications Standard LED color LED wavelength Forward (V max) Typical (V TYP) Luminous intensity
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30 MCD
Orange 580-610 nm 2.5V 2.1-2.2V 50-100 MCD
  1. LED intensity/wavelength measured with photo research PR-650 colormeter
  2. With a forward current of 20mA, absolute maximum ratings (Ta=25°C)
RoHS peak wave solder RoHS-5 peak wave solder temperature rating 235 ±5°C
RoHS-6 peak wave solder temperature rating 260 ±5°C
Operating and storage temperature
Operating temperatures -40 to 85°C
Storage temperatures -40 to 85°C
Applications
Networking products NIC, hub, switch, router, bridge, work
Station PC/system, printer, server, NB,ia cable modem, XDSL application, set-top-box

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the step are doing by ourself. So we can control the quality.

1) Manufactured under strict controls.
2) ISO 9001:2008
3) UL Certification
4) Reach Cetitifaction
5) RoHS compliance
6) OEM for PULSE
7) Active Environmental policy
8) Every module tested 3times (not just batch tested)
