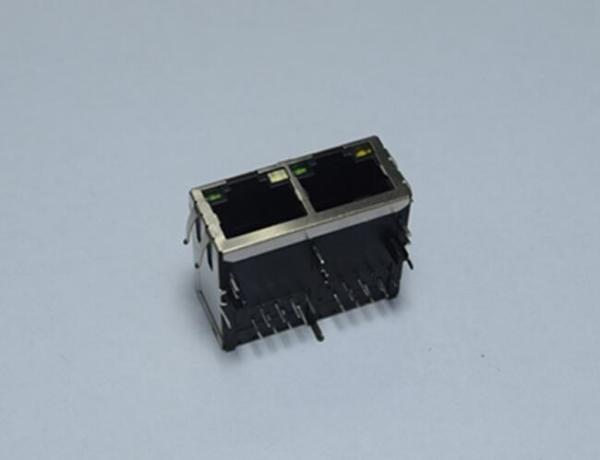

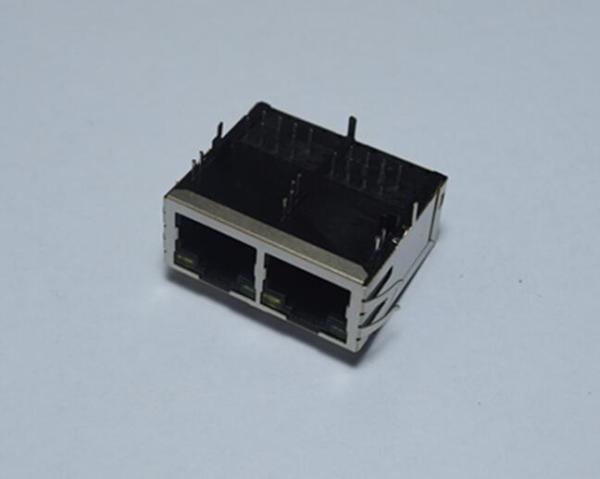

Side Enter Cat6 Cable Female Rj45 Connector Jack , 10 Pin RJ45 Ethernet Jack
Side Enter Cat6 Cable Female Rj45 Connector Jack , 10 Pin RJ45 Ethernet Jack
Side Enter Cat6 Cable Female Rj45 Connector Jack , 10 Pin RJ45 Ethernet Jack
Side Enter Cat6 Cable Female Rj45 Connector Jack , 10 Pin RJ45 Ethernet Jack
Specifications
Brand Name :
CSAK
Model Number :
CSAK-5939(5926-88-200-001-L)
Certification :
RoHs , UL , SGS
Place of Origin :
GuangDong
MOQ :
500pcs
Price :
Price to be negotiated in person
Payment Terms :
T/T, L/C
Supply Ability :
1000,000pcs/Month
Delivery Time :
24-30 work days
Packaging Details :
100pcs/Tray
shield :
Brass alloy
terminal :
phosphor copper
Gender :
Female Connector
LED color :
yellow, gree, red, blue
Tab Direction :
Tap Up,Tap Down
Application :
TV , Set Box , IP CAMER , DVR, VOIP , Computer
Description

21.6L RJ45 Female Connector Side Enter 10P Jack Leds Media panel PC

Material

1. RJ45 1X1 RJ45 Female Jack Tab-up
2. Through Hole
3. 10/100/1000 Base-T
4. Contact Area : Gold Flash

Feature:


1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed For Network Interface Card Application.
3. Designed To Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better

Applications:

networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly

Specifications

Meterial Housing: Thermoplastics,UL94V-0,Color:Black
Contacts: Phosphor Bronze
Shell: Brass
Finish Contacts: 1u''Au Plating on contact Area,100u'' Min.Tin Pltaing on solder Tall Area, 80u''Min.Nickel UnderPlating Over All
Shell: 50-100u'' Nickel UnderPlating Over All
Recommend PCB Thickness :1.2mm
Specification Dielectric Strength:AC500V for 1min.
Insulator resistance:100MΩmin,at DC100V.
Contact Resistance:45MΩMax.
Current Rating:500mA
Operating temperature:-40℃ to +105℃

Why you buy from us?

a. We respect the customer terms to protect customer privacy projects

b. High quality with attractive price .

c. Fast lead time

d. Happy deal

E. Our Professional engineer free design 3D for your special projects and solution your customer problem
