Top Entry PCB RJ45 Female Connector / Modular Rj45 Connectors Vertical Type
Top Entry PCB RJ45 Female Connector / Modular Rj45 Connectors Vertical Type
Specifications
Brand Name :
XINGGE
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1000PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50000 Piece/Pieces per Day
Delivery Time :
7-15days
Packaging Details :
Inner packing: Plastic tray/box Outer packing: Carton box Size: 38.5M*27M*36.5M Customized packing is accepted.
Application: :
PCB
Type :
Female
DURABILITY: :
VOLTAGE RATING
. VOLTAGE RATING : :
125 VAC RMS
HOUSING MATERIAL : :
PBT,PA66(UL 94V-0)
Description

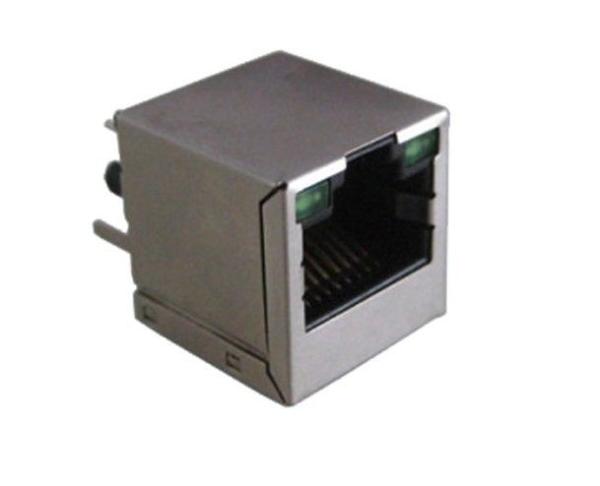

Top Entry RJ45 Female Connector Shielded with LED

  • Top Entry RJ45 Female Connector Shielded with LED
  • R/A / 90 degree / vertical type push in type head;
  • 8 positions
  • 8 contacts

Product Description

MATERIAL:
1. HOUSING MATERIAL : PBT,PA66(UL 94V-0)
2. CONTACT MATERIAL : ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE; GOLD PLATING OVER NICKEL
ELECTRICAL/PHYSICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 30 MILLIOHMS MAX2
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500V DC
5. DIELECTRIC WITHSTANDING RISISTANCE : 1000V AC RMS 60Hz. 1MIN
6. DURABILITY : 750 CYCLES MIN
7. TEMPERATURE : -40℃ to+85℃

Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
