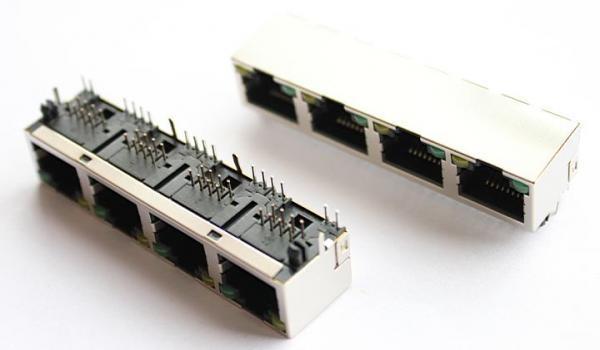

Side Entry RJ45 Female Connector With LED , RJ45 Module Plug Jack 1x4 8P8C Socket
Side Entry RJ45 Female Connector With LED , RJ45 Module Plug Jack 1x4 8P8C Socket
Specifications
Brand Name :
XINGGE
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
Guangdong, China (Mainland)
MOQ :
500 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5,000,000pcs/Month
Delivery Time :
7-15days
Packaging Details :
100/pcs plastic tray at first, then put into box
Housing: :
High Temp, Thermoplastic.
Shield: :
Brass With Nickel Plated.
Preloaded :
Yes
Shielded :
Yes
LEDs: :
Optional
Mount Style :
DIP / Side Entry
Description

You Long Electronics Limited. Is a professional development, design, production and sales as one of the hi-tech enterprises.RJ45,RJ11,USB,SFP CAGE network connector professional production network and communications products.

If you need pls contact with Jack Yang

email address:sales002#rj45jack.com,Skype:rj45jackcom

Materials

Shield: Brass With Nickel Plated.

Housing: High Temp, Thermoplastic.

Flammability Rating UL 94V-O

Contacts: 0.35mmThickness Phosphor Bronze

Plating: Gold Plating Over Nickel In Contact Area

Tin Plating Over Nickel In Solder Area

Gold Plating Options=30u'

FastJack 1x1 Tab-Down Gigabit Short Body RJ45 Female PCB Connector

FastJack ™ 1x1 Tab-Down Gigabit Short Body RJ45
1. Gigabit (10/100/1000) Ethernet RJ45
2. IEEE802.3ab Compliant
3. 350uH min OCL at 8mA DC Bias Across the Full Temp Range
4. 30µ” Gold Plating (min) on Contacts
5. 100% Compliance Testing
6. 1500Vrms Hi-Pot
7. Proprietary Robust Contact Design
FastJack ™ 1x1 Tab-Down Gigabit Short Body RJ45 , Meeting IEEE 802.3u
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
