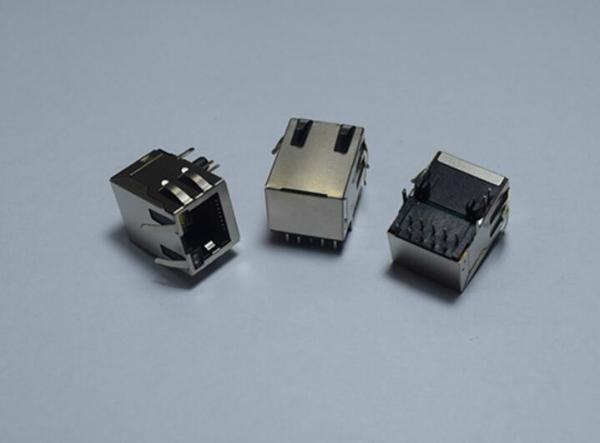

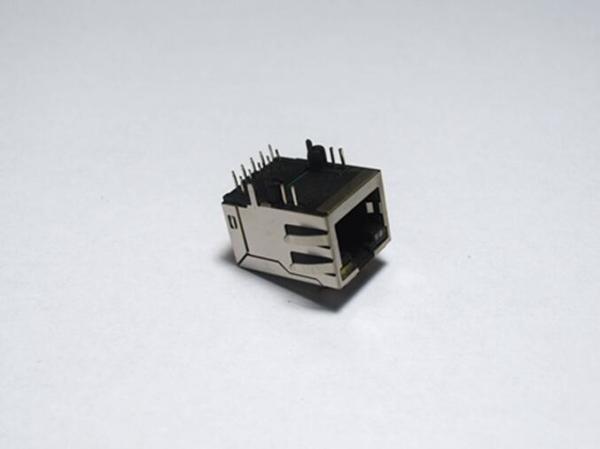

90 Degree Shielded RJ45 Female Ethernet Connector Single Port With LEDs
90 Degree Shielded RJ45 Female Ethernet Connector Single Port With LEDs
90 Degree Shielded RJ45 Female Ethernet Connector Single Port With LEDs
90 Degree Shielded RJ45 Female Ethernet Connector Single Port With LEDs
90 Degree Shielded RJ45 Female Ethernet Connector Single Port With LEDs
90 Degree Shielded RJ45 Female Ethernet Connector Single Port With LEDs
Specifications
Brand Name :
CSAK
Model Number :
CSAK-5939(5926-88-200-001-L)
Certification :
RoHs , UL , SGS
Place of Origin :
GuangDong
MOQ :
500pcs
Price :
Price to be negotiated in person
Payment Terms :
T/T, L/C
Supply Ability :
1000,000pcs/Month
Delivery Time :
24-30 work days
Packaging Details :
100pcs/Tray
Type :
Jack Network Socket
Orientation :
90 Degree
Gender :
Female Connector
Port :
Single Port
Tab Direction :
Tap Up,Tap Down
Feature :
Fire/flame retardant
Description

IEEE 802.3 Shielded RJ45 Female Connector 10P Jack Network Socket with LEDs


Material

1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selectine Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option

Electrical:

Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax

Specifications

Part Number

Manufacturer

Part Number

 Manufacturer Description
CSAK Shielded RJ45 Female Connector With One USB Modular Jack And Network Socket
Series Connector Type Applications Mounting Type
Connectors, Interconnects RJ45 USB Jack Side Enter
Orientation Termination LED Color Shielding
90° Angle (Right) Solder Yellow / Green

Shielded , EMI Finger

Our Services

Our main products including: RJ11 connector, RJ45 connector, RJ45 connector with USB, double layers RJ45 connector(2xn), 180 degree RJ45 connector and kinds of integrated transformer RJ45 connector. Mainly used in desktop computers, notebook computers; switches, routers, HUB, ADSL; a variety of instruments, game machines; security equipment; network TV; food chain network interface.
