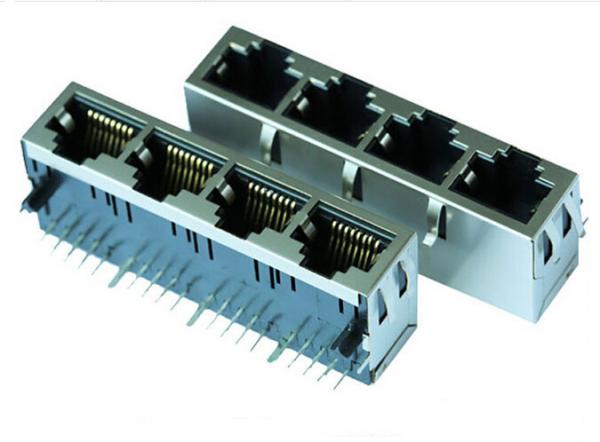

Multi Port POE Rj45 Pcb Connector Tap Up / Tap Down , Modular Jack Connector
Multi Port POE Rj45 Pcb Connector Tap Up / Tap Down , Modular Jack Connector
Multi Port POE Rj45 Pcb Connector Tap Up / Tap Down , Modular Jack Connector
Multi Port POE Rj45 Pcb Connector Tap Up / Tap Down , Modular Jack Connector
Specifications
Brand Name :
XINGGE
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Piece/Pieces
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
6000000 Piece/Pieces per Month 0857321014
Delivery Time :
7-15days
Packaging Details :
: The Part Number HY901184A package:60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1320pcs) of each carton
Type :
RJ45
Application :
PCB
Gender :
Female
RJ45 Connector OCL: :
350uh min
Tab Direction: :
Tap Up/Tap Down
Hi-pot: :
1500Vrms
Description

100Base -T Through Hole 1x1 Tab up POE Modular Jack RJ45 Connector

Application-LAN
ETHERNET(NON POE)
AutomDX
 YES
Bst Circuit
 YES
Configuration RX
 T,C
Configuration TX
 T,C
Contact Mating Area Plating
 GOLD 6u"/15u"/30u"
Cores Per Port
 4
Diodes
 NO DIODES
LED Option
 WITHOUT LEDS
Latch
 DOWN
Number of Ports
 1X4
PCB
 FR4
PCB Mount Angle
 SIDE ENTRY
PCB Retaining Post
 T POST
Pin Type
 THT SOLDER
RoHS Compliant
 YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
 YES
Shield EMI Tabs
 WITH OR WITHOUT
Speed
 10/100 BASE-T
Temperature
 0 TO 70°C/-40 TO 85°C
Turns Ratio RX
 1CT:1
Turns Ratio TX
 1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

• ISO 9001:2008

• UL Certification

• Reach Cetitifaction

• RoHS Compliance

• Active Environmental Policy

100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• LINK-PP Is OEM Of TE (Tyco) For 9 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

• Quality Guarantee:6 Years

Competitive Price And Service

• More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available

• Provide New Design For Customer Requirements

• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

Multi Port POE Rj45 Pcb Connector Tap Up / Tap Down , Modular Jack Connector
