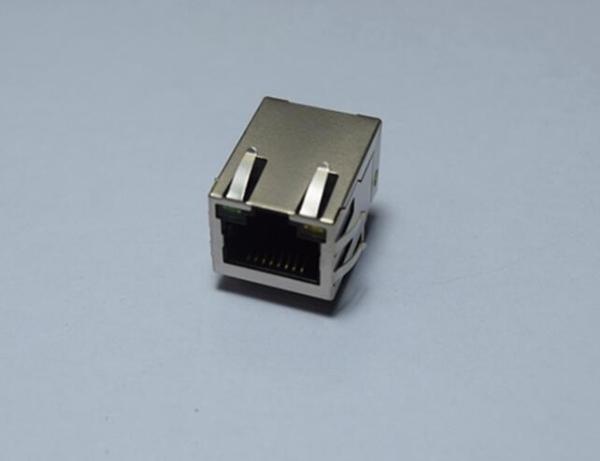

Single Port RJ45 Lan Jack Socket Tab DownModular Network Connector 8 Pin
Single Port RJ45 Lan Jack Socket Tab DownModular Network Connector 8 Pin
Single Port RJ45 Lan Jack Socket Tab DownModular Network Connector 8 Pin
Single Port RJ45 Lan Jack Socket Tab DownModular Network Connector 8 Pin
Specifications
Brand Name :
XINGGE
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
2000 Piece/Pieces
Payment Terms :
T/T, L/C, D/A, D/P, Western Union,PAYPAL
Supply Ability :
500000 Piece/Pieces per Month
Delivery Time :
2 weeks
Packaging Details :
tray
Type :
RJ45
Voltage Rating :
125 V AC(RMS)
Application :
Computer
Contact Plating :
1'-50u'
plastic material :
PBT black
RJ45 Connector Tab Direction: :
Tap Up/Tap Down
Description

8-pin Single Port Tab-down RJ45 Lan Jack Modular Network Connector PCB

Specifications:

Type socket rj45
Temperature -30~+70°c
Rated Load AC125V 1.25A
Contact Resistance 20MΩ Max
Insulation resistance ≥500MΩ
Withstand Voltage AC 1000V(50Hz)/min
Retention strength 7.7KG Between jack and plug
Life >750 times


Material


Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Shield: Copper alloy with nickel plating
LED: Tin plating on LED tail. Epoxy lens.

Application

LED TV, SMart TV , STB ,computer , Modem,Router, net splitter and so on...

socket rj45


Mechanical


Durability: 750 mating & unmating cycles
Mated Retention Force: 7.7kg
Operating Temperature: -40°C to +85°C

Single Port RJ45 Lan Jack Socket Tab DownModular Network Connector 8 Pin

Single Port RJ45 Lan Jack Socket Tab DownModular Network Connector 8 Pin
