DIP 1 X 5 RJ45 Multi Port 8 Pin 8 Contact 90 Degrees PBT / PA66 / PA46 Housing Material
DIP 1 X 5 RJ45 Multi Port 8 Pin 8 Contact 90 Degrees PBT / PA66 / PA46 Housing Material
DIP 1 X 5 RJ45 Multi Port 8 Pin 8 Contact 90 Degrees PBT / PA66 / PA46 Housing Material
DIP 1 X 5 RJ45 Multi Port 8 Pin 8 Contact 90 Degrees PBT / PA66 / PA46 Housing Material
DIP 1 X 5 RJ45 Multi Port 8 Pin 8 Contact 90 Degrees PBT / PA66 / PA46 Housing Material
DIP 1 X 5 RJ45 Multi Port 8 Pin 8 Contact 90 Degrees PBT / PA66 / PA46 Housing Material
Specifications
Brand Name :
CSCE
Model Number :
52B-588111X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Application :
PCB
Material :
PBT PA66 PA46
Pin :
8P8C
Operating temperature :
-40℃ to 85℃
Rated voltage :
125V
Description
5225 Series DIP 90 Degrees 1x5 Multi Port RJ45 8 Pin 8 Contact 90 Degrees PBT Material

Product Specification:

Specification: Multiple-port RJ45 Cross Part NO: 52B-588111X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT/PA66/PA46
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. Hook Material Brass
15. Hook Plating Ni Plating

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We will asap reply with in 24h.

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

FAQ

1. How can i get a sample?

A: just check with our sales.

2. How to develop a new product base on an idea?

A: Tell us what you want, Then we will design it for free.

3. How about OED,ODM?

A: 13years experiences in OEM,ODM.

4. How to reduce your risk?

A: Check the sample before order.

5. How about the after-sale service?

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.

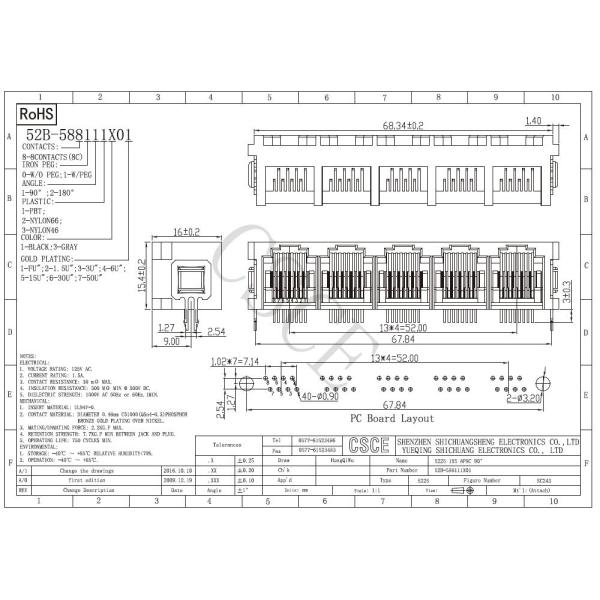

Porduct drawing:

DIP 1 X 5 RJ45 Multi Port 8 Pin 8 Contact 90 Degrees PBT / PA66 / PA46 Housing Material
