Specifications
Brand Name :
CSCE
Model Number :
56C-140800111X01-B
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Product name :
10 pin RJ45 connector
Transmission rate :
10/100/1000Mbps
Connector type :
RJ45
Business type :
Manufacturer
Keywords :
RJ45 Jack
Description

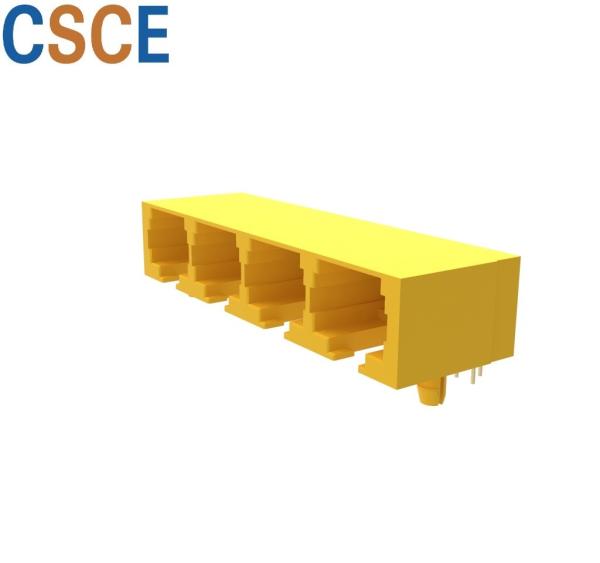

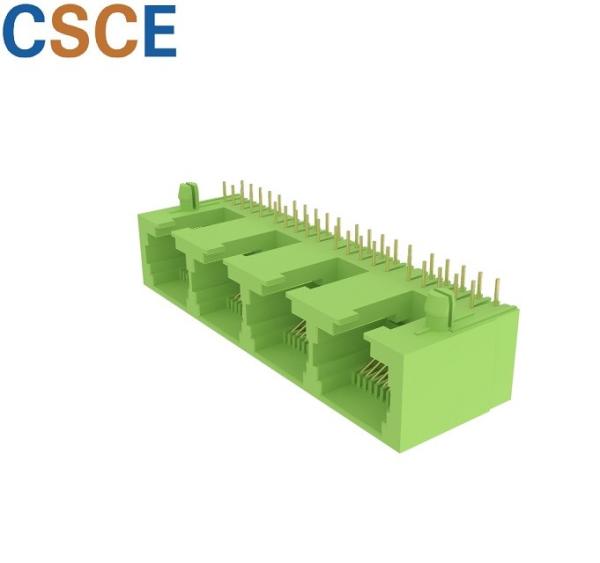

5622-B Series Gigabit Ethernet 4 Port Multi Port RJ45 10P8C With Post Tap Down Connector

About us

Established in Mar, 2005. Shenzhen CSCE Electronics Co,Ltd is a high-tech enterprise that specializes in the development design, production and sale of communication network connectors. The main products include RJ45, RJ11, RJ45+ TRANSFORMER, LAN-Transformer,USB, DC jack, HDMI,SFP ,PIN Header,Female Header,SATA,Antennas etc, The company acquired the ISO9001-2000 quality management system Certification, ISO14001 environmental management system and UL certification.
Our company have the factory in YueQing ,Shenzheng and JiangXi,with total plant area of 18,000㎡,and has over 500 employees.We have a strong R&D ability for new product, .equipment and manufacturing ability for mould. Meanwhile, advanced production equipment and quality testing equipment to make our products with reliable quality,competitive price, and in time delivery well-selling in both domestic and foreign markets,such as southeast Asia, Europe, America, Middle East etc. with our efforts, we built our own famous brand-CSCE and become world famous company's qualified suppliers,such as Hisense, Skyworth, T&W, HGTECH, JEZETEK, CIG, TwoWing, HUAWEI, TCL,FOXCONN ,TENDA ,PANASONIC ,NEC ,HUMAX and so on …

Product Details:

Specification: RJ45 Multi Port Cross Part NO: 56C-140800111X01-B
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

Product Description:

Retention Strength 7.7KG.F MIN Between Jack And Plug
Operating Life 750 Cycles MIN.
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Storage Temperature ﹣40℃ to +85℃
Insert Material UL94V-0
Mating/Unmating Force 2.2KG.F MAX.
Operation Temperature ﹣40℃ to +85℃
Current Rating 1.5A
Contact Resistance 30milliohm Max
Insulation Resistance 500 MΩ MIN @ 500V DC.
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Voltage Rating 125v AC

Product Drawing:

Gigabit Ethernet 10 Pin RJ45 Connector Current Rating 1.5A With Post Tap Down Connector

FAQ:

Q1. Are you a factory or trading company?
A1. We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2. How does your factory do regarding quality control?
A2. All the products will be 100% checked before the shipment.

Q3. When can I get the price?
A3. Usually we quote within 24 hours after we get your inquiry.

Q4. How could I get a sample?
A4. if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.

Q5. What is the price of shipping?
A5. Depending upon the port of delivery, prices varies.

Our Services

1. Any inquiries will be replied within 24 hours.

2. Professional manufacturer, 12 years manufacturing experience.

3. OEM/ODM available

4. All products will have been strictly Quality Checked in house before packing.

5. Faster delivery Sample order in stock, and 3-7 days for bulk production.

6. Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.

You also can choose your own shipping forwarder!
