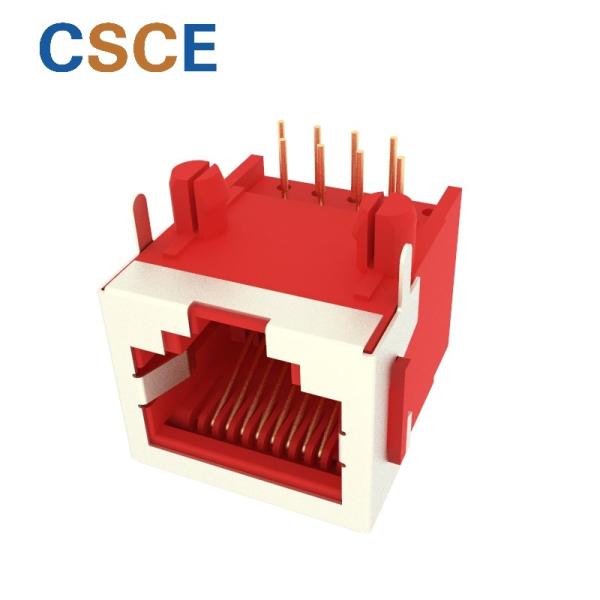

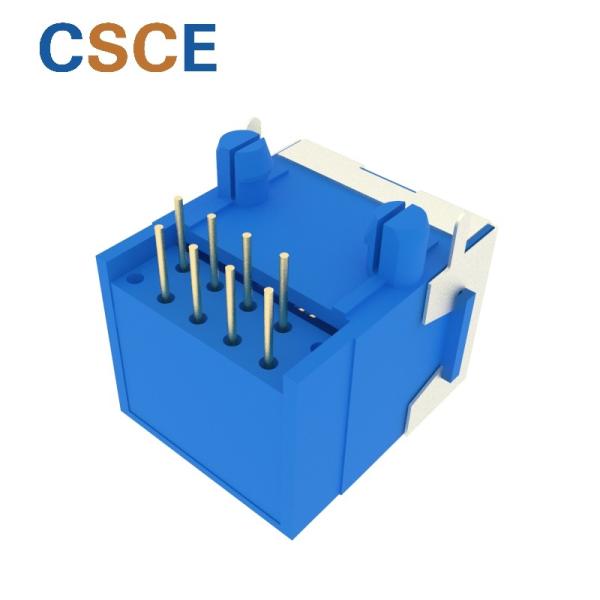

Ethernet Single Port RJ45 10P8C Connector Half Shieldedr through hole connector |
Quick Details:
Specification: | RJ45 Single port | Cross Part NO: | 55B-210800111X01 |
Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/Money Gram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.
CSCE Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• CSCE Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services.
About us
Established in Mar, 2005. Shenzhen CSCE Electronics Co,Ltd is a high-tech enterprise that specializes in the development design, production and sale of communication network connectors. The main products include RJ45, RJ11, RJ45+ TRANSFORMER, LAN-Transformer,USB, DC jack, HDMI,SFP ,PIN Header,Female Header,SATA,Antennas etc, The company acquired the ISO9001-2000 quality management system Certification, ISO14001 environmental management system and UL certification.
Our company have the factory in YueQing ,Shenzheng and JiangXi,with total plant area of 18,000㎡,and has over 500 employees.We have a strong R&D ability for new product, .equipment and manufacturing ability for mould. Meanwhile, advanced production equipment and quality testing equipment to make our products with reliable quality,competitive price, and in time delivery well-selling in both domestic and foreign markets,such as southeast Asia, Europe, America, Middle East etc. with our efforts, we built our own famous brand-CSCE and become world famous company's qualified suppliers,such as Hisense, Skyworth, T&W, HGTECH, JEZETEK, CIG, TwoWing, HUAWEI, TCL,FOXCONN ,TENDA ,PANASONIC ,NEC ,HUMAX and so on …
Product Description:
Retention Strength | 7.7KG.F MIN Between Jack And Plug |
Contact Resistance | 30milliohm Max |
Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
Current Rating | 1.5A |
Storage Temperature | ﹣40℃ to +85℃ |
Operation Temperature | ﹣40℃ to +85℃ |
Voltage Rating | 125v AC |
Mating/Unmating Force | 2.2KG.F MAX. |
Insulation Resistance | 500 MΩ MIN @ 500V DC. |
Insert Material | UL94V-0 |
Operating Life | 750 Cycles MIN. |
Product Drawing:
