100 Base T RJ45 Single Port Yellow Color Housing Material PBT / PA66 / PA46
100 Base T RJ45 Single Port Yellow Color Housing Material PBT / PA66 / PA46
100 Base T RJ45 Single Port Yellow Color Housing Material PBT / PA66 / PA46
100 Base T RJ45 Single Port Yellow Color Housing Material PBT / PA66 / PA46
100 Base T RJ45 Single Port Yellow Color Housing Material PBT / PA66 / PA46
100 Base T RJ45 Single Port Yellow Color Housing Material PBT / PA66 / PA46
Specifications
Brand Name :
CSCE
Model Number :
56F-118800111X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Material :
plastic
Product name :
RJ11 RJ45 CONNECTOR 1*1PORT 10/100 BASE-T RJ45 JACK
Pin :
8pin
Rated voltage :
125V
Rated current :
1.5A
Description
100 Base T Right Angle 8P8C RJ45 Single Port Jack Plastic Housing

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

Product Description:

Retention Strength 7.7KG.F MIN Between Jack And Plug
Storage Temperature ﹣40℃ to +85℃
Insulation Resistance 500 MΩ MIN @ 500V DC.
Housing Material PBT/PA66/PA46
Contact Resistance 30milliohm Max
Mating/Unmating Force 2.2KG.F MAX.
Operation Temperature ﹣40℃ to +85℃
Operating Life 750 Cycles MIN.
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Current Rating 1.5A
Voltage Rating 125v
Insert Material UL94V-0
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.

Quick Details:

Specification: RJ45 Single port Cross Part NO: 56F-118800111X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

FAQ

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 5-7 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer

2. Good quality, competitive price with best service.

3. Available for ODM/OEM order.

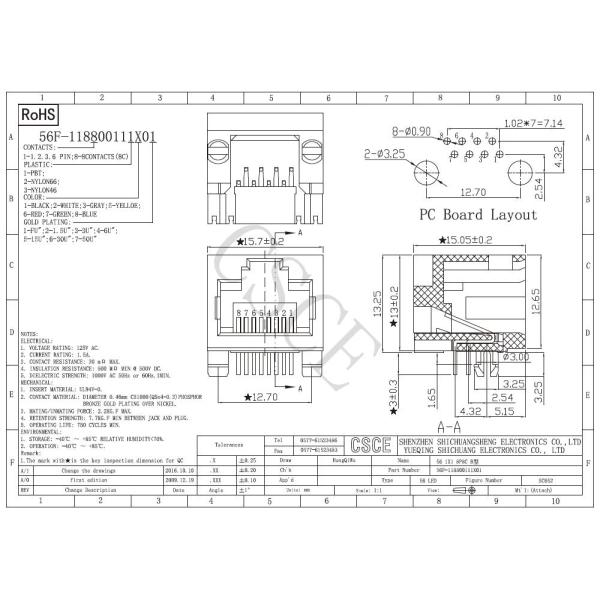

Product Drawing:

100 Base T RJ45 Single Port Yellow Color Housing Material PBT / PA66 / PA46

Why choose us

  1. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  2. Specializes in the development , design , production and sale of communication network connectors .

  3. Reasonable prices, very competitive and reliable.

  4. Excellent sales team and tech team ready to serve you.

  5. Fast delivery.

  6. OEM services with agreed quantity by both parties.

  7. We hope to make long term business cooperation with all our customers.
