EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds
EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds
EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds
EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds
EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds
EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds
Specifications
Brand Name :
CSCE
Model Number :
56I-328800121X01S
Certification :
ROHS,ISO9001,ISO 9001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
name :
RJ45 Modular Jack
Application :
PCB
Material :
PBT PA66 PA46
Pin :
8P8C
Operating temperature :
-40℃ to 85℃
Description
EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds

Product Specification:

Specification: RJ45 Modular Jack Cross Part NO: 56I-328800121X01S
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT/PA66/PA46
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. Shell Material Brass
15. Shell Plating Ni Plating
16. LED Option Yellow/Green LEDs

Pre-sale service:

1. We try to do best communicate with every customer about all the questions and promptly

2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

After service:

1. We do follow up after you get the products

2. We will answer customer questions in time. If need, we can provide free guidance if customer need new rqquirements.

3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

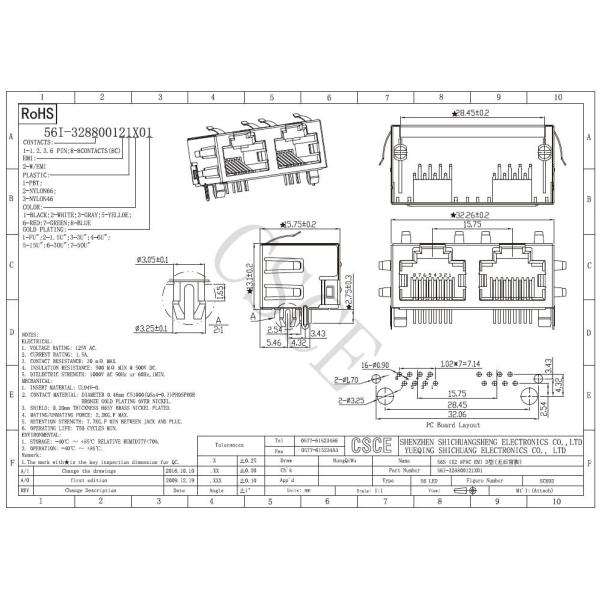

Product Drawing:

EMI Shielded RJ45 Modular Jack 1 * 2 Ports Housing Material PBT / PA66 / PA46 Without Leds
