100 Base 8 Pin RJ45 Ethernet Jack , RJ45 LED Connector Current Rating 1.5A
100 Base 8 Pin RJ45 Ethernet Jack , RJ45 LED Connector Current Rating 1.5A
100 Base 8 Pin RJ45 Ethernet Jack , RJ45 LED Connector Current Rating 1.5A
100 Base 8 Pin RJ45 Ethernet Jack , RJ45 LED Connector Current Rating 1.5A
100 Base 8 Pin RJ45 Ethernet Jack , RJ45 LED Connector Current Rating 1.5A
100 Base 8 Pin RJ45 Ethernet Jack , RJ45 LED Connector Current Rating 1.5A
Specifications
Brand Name :
CSCE
Model Number :
56A-31881021X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
Led connector
Application :
PCB
Pin :
8pin
Housing :
PBT UL94V-0
Connector type :
RJ45 8C8P
Package :
Tray
Business type :
Manufacturer
Description

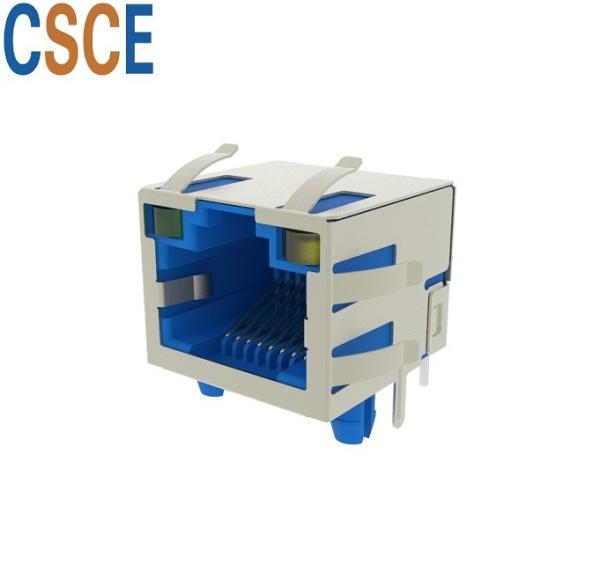

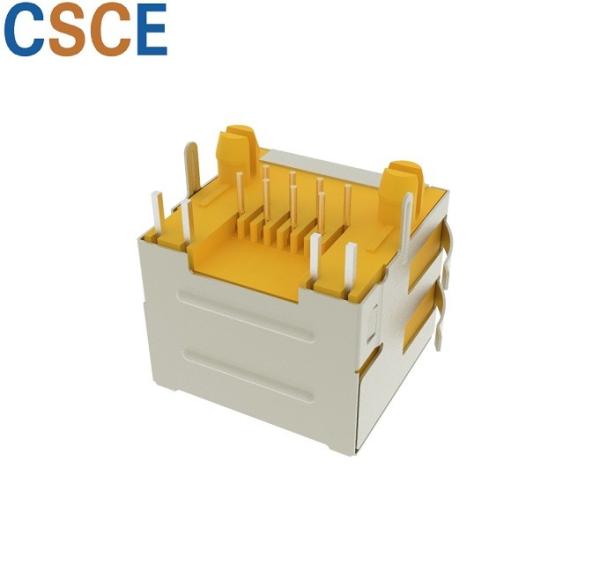

Ethernet RJ45 Connector 100 Base shielded RJ45 Modular Jack 8p8c With Leds

Product Specification:

Specification: RJ45 modular jack Cross Part NO: 56A-31881021X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet


Product Details:

1. Mating/Unmating Force 2.2KG.F MAX.
2. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
3. Contact Resistance 30milliohm Max
4. Current Rating 1.5A
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Voltage Rating 125v 1000V AC 50Hz or 60Hz,1MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature Relative Humidity<70%
11. Operating Life 750 Cycles MIN
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"/50u''
14. LED Option Yellow/Green LEDs

Why choose us

  1. Equipment and manufacturing ability for mould
  2. Competitive price , and in time delivery well-selling in both domestic and foreign markets
  3. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  4. Specializes in the development , design , production and sale of communication network connectors .

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

FAQ

*Q:Can I get samples from you?

A:We are honored to offer you samples for quality check.

*Q:What parts are manufactured by you?

A:All of frame parts are manufactured by us.

*Q:What's the leading time? (How long do you need to prepare my goods?)

A:5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q:How long do I need to wait before my goods arrive?

A:3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

Product Drawing

100 Base 8 Pin RJ45 Ethernet Jack , RJ45 LED Connector Current Rating 1.5A
