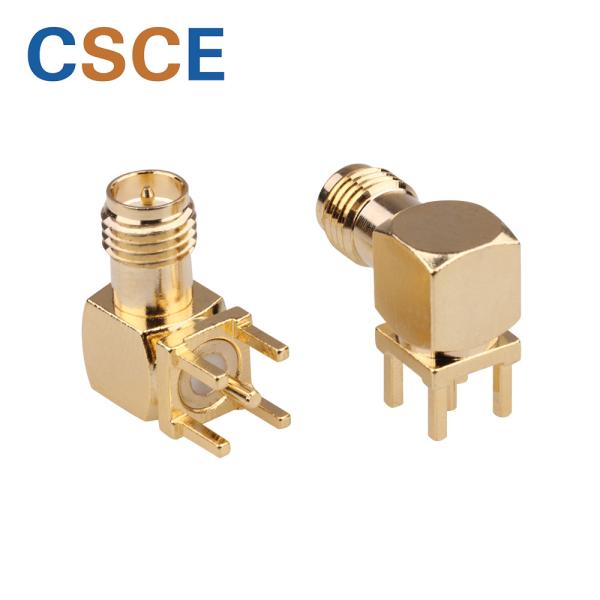

50ohm SMA Female Right Angle Connector , RF Coaxial Connector For PCB Mount
50ohm SMA Female Right Angle Connector , RF Coaxial Connector For PCB Mount
50ohm SMA Female Right Angle Connector , RF Coaxial Connector For PCB Mount
50ohm SMA Female Right Angle Connector , RF Coaxial Connector For PCB Mount
Specifications
Brand Name :
CSCE
Model Number :
SC1-SMA0000040
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Connector :
SMA
Vswr :
≤1.5
Frequency range :
0-6Ghz
Impedance :
50ohm
Size :
L15mm H:13.8mm
Product name :
SMA Female Right Angle Connector
Description
RF Coaxial Connector SMA Jack Right Angle SMA Female Connector For PCB Mount

Quick Details:

Specification: Antennas Cross Part NO: SC1-SMA0000040
Mounting: solder Samples: Available 20-3 Pcs

Product Description:

Dielectric Withstanding Voltage

500 VRMS min
Working Voltage

335 VRMS max
VSWR

1.5max
Frequency Range

0-6 GHz
Impedance 50 ohm
Outer Contact 2 Milliohms max
Center Contact 6 Milliohms max
Insulator Resistance 5000 Megohms min

Product Material:

Male Brass Gold 30 micro-inches
Female Beryllium copper Gold 30 micro-inches
Insulators Teflon None
Crimp Ferrules Annealed Brass Gold 3 micro-inches
Clamp Gaskets Silicone rubber None
Body,Metal Parts Brass Gold 3 micro-inches

Why choose us

  1. Have a strong research and development ability for a new product
  2. Equipment and manufacturing ability for would
  3. Competitive price , and in time delivery well-selling in both domestic and foreign markets
  4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  5. Specializes in the development , design , production and sale of communication network connectors .

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

Competitive Price And Service

• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available

Competitive Advantage

14 years production experience,

3000 staff,

100% test

Flexible delivery time

Product Drawing:

50ohm SMA Female Right Angle Connector , RF Coaxial Connector For PCB Mount
