48 Pin Power Over Ethernet Transformer DIP 10 / 100 / 1000 Base - T ROHS Approved
48 Pin Power Over Ethernet Transformer DIP 10 / 100 / 1000 Base - T ROHS Approved
Specifications
Brand Name :
CSCE
Model Number :
G4802DG
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Coil number :
Isolation
Lan transformer speed :
100/1000 BASE-TX
Mounting type :
smt
Operating temperature ran :
0 TO + 70℃
Usage :
High Frequency
Name :
10 Base-T Lan Transformer
Description
48 Pin Power Over Ethernet Transformer DIP 10 / 100 / 1000 Base - T ROHS Approved

Product Features:

Complies with requirement of IEEE 802.3

standard,including 350uH OCL with 8mA bias
Operating temperature range 0℃-70℃
Storage temperature range -25℃-125℃
Complies with ROHS requirements

Product Specification:

Electrical Specification@25℃ Operating Temperature 0 to +70℃
Part NO Trun Ratio (±3%) OCL primary@ 100KHz,0.1Vrms,8mA Leakage primary@ 100KHz,0.1Vrms Cww (Pri.:Sec.) DCR (Ω)
TX RX Primary Secondary
G4802DG 1CT:1CT 1CT:1CT 350uH Min 0.5uH max 35pF Max 0.9 Max 1.2 Max
Electrical Specification@25℃ Operating Temperature 0 to +70℃
Part NO Insertion Ioss
(dB max)
0.1-100MHz		 Return Ioss(dB min)
MHz		 CMRR Crosstalk Isolation
Voltage
(Vrms min)
(dB min .) (dB min .)
MHz MHz
1-30 40 60-80 100 30 60 80-100
G4802DG -1 -18 -14.4 -12 -10 -42 -35 -32 1500

Features:


1. All materials comply with ROHS
2. High-wearing feature
5. OEM & ODM are both available.
6. Quality Assurance, 36 months warranty.
7. Riveting machine was invented by us.
8. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

Pre-sale service:

1. We try to do best communicate with every customer about all the questions and promptly

2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

After service:

1. We do follow up after you get the products

2. We will answer customer questions in time. If need, we can provide free guidance if customer need new rqquirements.

3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.

Professional Certification

• ISO 9001:2008

• UL Certification

• Active Environmental Policy

Competitive Price And Service

• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available

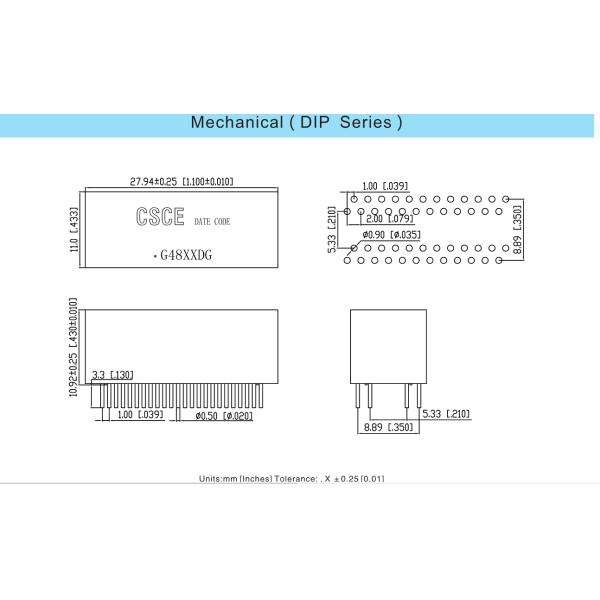

Product Drawing:

48 Pin Power Over Ethernet Transformer DIP 10 / 100 / 1000 Base - T ROHS Approved

48 Pin Power Over Ethernet Transformer DIP 10 / 100 / 1000 Base - T ROHS Approved
