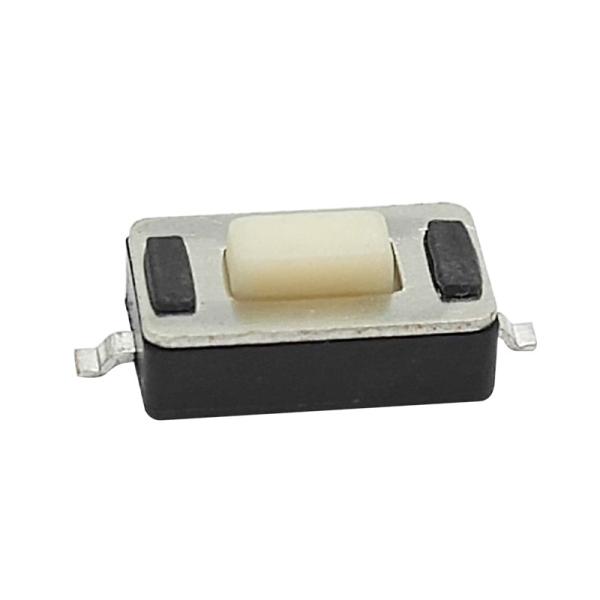

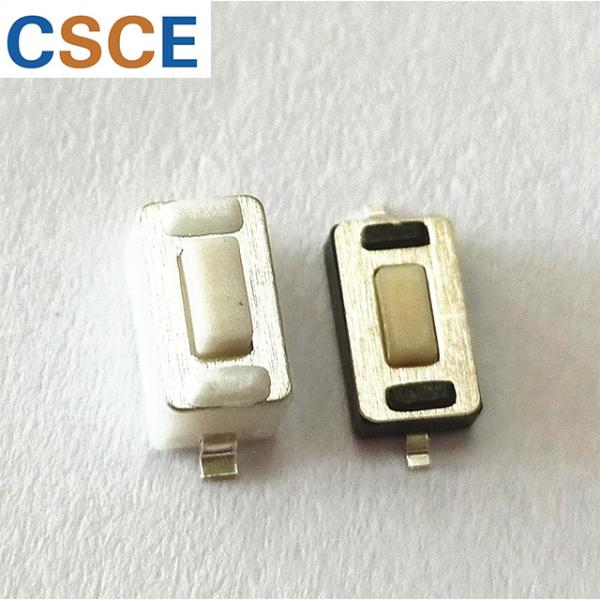

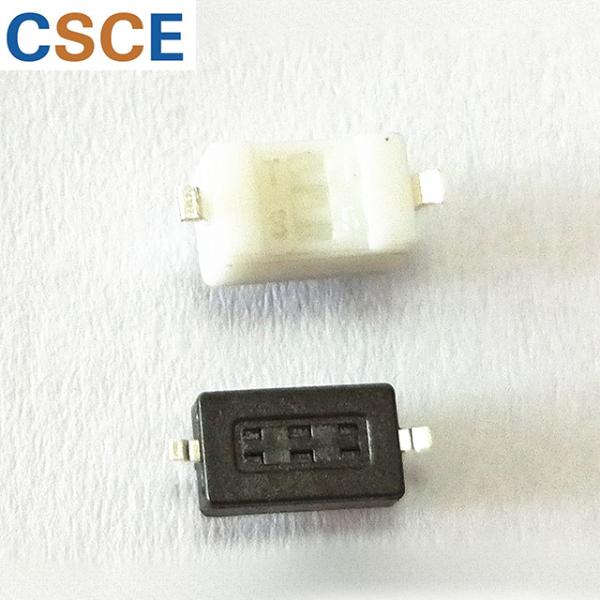

3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color
3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color
3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color
3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color
3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color
3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color
Specifications
Brand Name :
CSCE
Model Number :
SC-TS-3x6x2
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Contact Resistance :
≤0.03mΩ
Manufacturer :
Original Manufacturer
Operating Force :
1.8N-2.8N
Voltage withstand :
AC250V 50Hz/min
Part Type :
SMD Switch
Rating  :
DC12V 50mA
Operation Temp :
-20℃ ~ +70℃
Certificate :
ISO9001/CE/ROHS/REACH/MSDS/SGS
Description

3.5*6mm tact switch smd 2Pin Input Output Connectors keypad natural color

Competitive Price And Service


• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

Product Description:

Part Number SC-TS-B003
Part Type SMD Switch
Rating DC12V 50mA
Manufacturer Original Manufacturer
Contact Resistance ≤0.03mΩ
Operation Temp ‘-20℃ ~ +70℃
Electrical Life 100,000 Cycles Min
Operating Force 1.8N-2.8N
Dielectric Strength AC250V(50/60Hz for 1minute)
Enviroment humidity -25-+70°C
Relative humidity (40°C)≤95%
Insulation Resistance ≥100mΩ
Voltage withstand AC250V 50Hz/min
Push knorb height size Can be choosed H=1.5/3.0/3.5/4.0/4.3/4.5/5.0mm
Welding Conditions Hand Soldering 350℃ Max 3s Max
Condition for Reflow 260℃Max 5s Max
Welding time(seconds) 3S
Welding capacity 60W max
Dielectirc Voltage Proof 250V AC (50HZ/60HZ) 1min

Product Drawing:

3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

FAQ

*Q: Can I get samples from you?

A: We are honored to offer you samples for quality check.

*Q: What parts are manufactured by you?

A: All of frame parts are manufactured by us.

*Q: What's the leading time? (How long do you need to prepare my goods?)

A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q: How long do I need to wait before my goods arrive?

A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

Product tags

rgb pin

,

bi color led 2 pin

,

rgb led 4 pin
