Specifications
Brand Name :
CSCE
Model Number :
HH10-1N3D230-06B
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
SFP
Application :
sfp cage
Gender :
Female
Port :
2*4
Number of ports :
2X4
Rated voltage :
125V
Description
High Performance SFP Connector Fiber 2 * 4 Port Female SFP Cable Connector

Product Details:

Specification: SFP Connector Cross Part NO: HH10-1N3D230-06B
Material Nickel Samples: Available 2-3 Pcs

Product Specification:

Plating

15u''Min Gold On Mating Area

150u'' Min Mate Tin On Solder Tails

Plastic Housing High Temperature LCP,UL94V-0
Spring Stainless Steel,Thickness 0.20 mm
Temperature Range -40℃-+85℃
Packaging Tray Packaging
Material Cage Nickel Silver,Thickness 0.25mm
Contacts Phosphor Bronze,Thickness 0.20mm

why choose us?

100% Guarantee Quality

·Free samples (excluding freight charge)

·10 years experience for RJ45, RJ11, RJ12.4.Within a period of 12 months from the date of shipment.

·Manufactured Under Strict Controls.

·Online technical support.

·Factory evaluation anytime.

·100% Tested before shipment.

Our advantage

1.Short lead time: 7~10 days under 50k pcs.

2.High quality with competitive prices.

3.Free samples can provided.

4.Good service to each customers.

CSCE Connection of the principles

>To care for health and safety of employees as corporate responsibility,all production activities must give priority to employee’s safety and health.

>To control the production process effectively and abide by law and meet customer’s requirements.

>Focus on customer’s normal needs, with high quality high efficiency management to provide high quality service and products.

>Save resources,lower energy consumption. Reduce environmental pollution caused by production.

>Abide by law.

Continuous improvement, sustainable operation.

our services

OEM/ODM Capability:

Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.

OEM services encompass buyers logo or label, designs services plus a whole after sales support package.

FAQ:

Q1.Are you a factory or trading company?
A1.We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2.How does your factory do regarding quality control?
A2.All the products will be 100% checked before the shipment.

Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.

Q4.How could I get a sample?
A4.if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.

Q5.What is the price of shipping?
A5.Depending upon the port of delivery, prices varies.

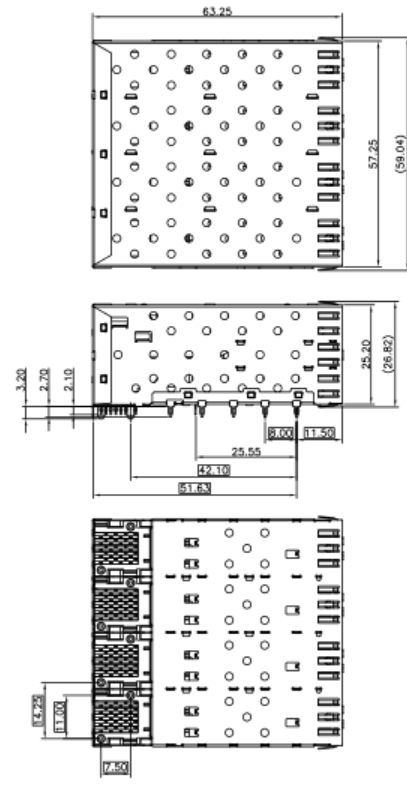

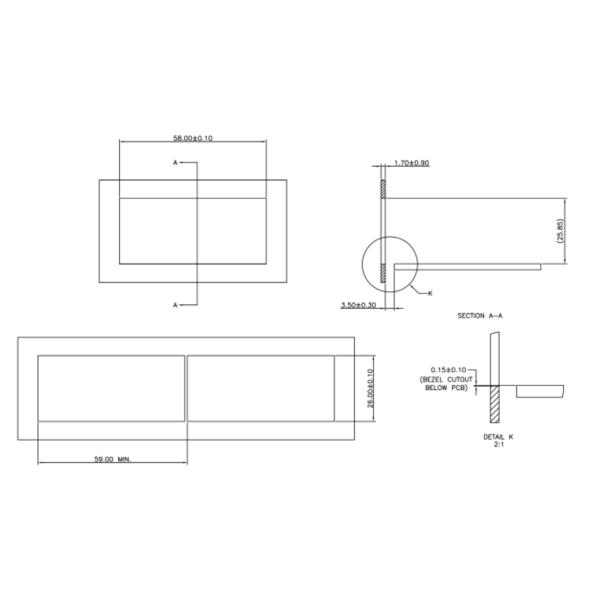

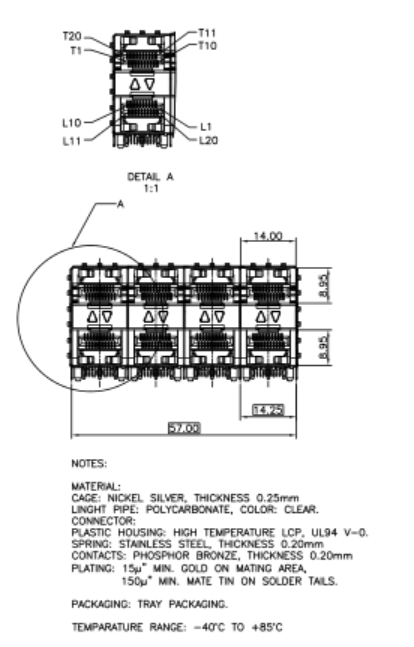

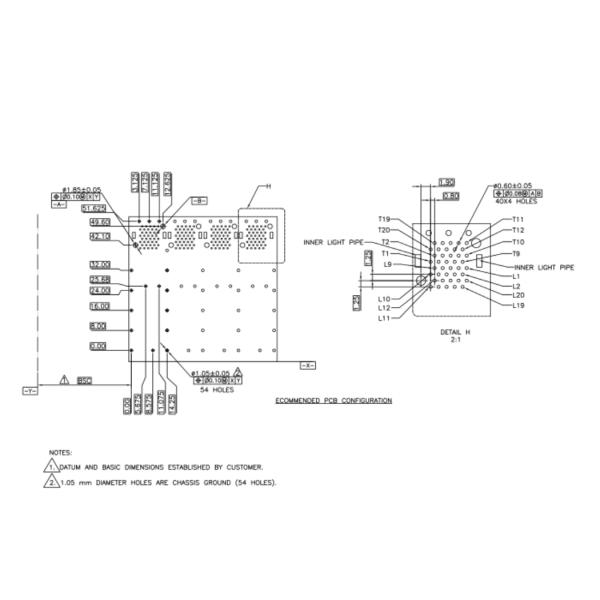

Product Drawing:

High Performance SFP Connector Fiber , 2 * 4 Port Female SFP Cable ConnectorHigh Performance SFP Connector Fiber , 2 * 4 Port Female SFP Cable Connector

High Performance SFP Connector Fiber , 2 * 4 Port Female SFP Cable Connector

High Performance SFP Connector Fiber , 2 * 4 Port Female SFP Cable Connector
