100Base-T RJ45 With Transformer , RJ45 Magnetic Jack Contact Resistance
100Base-T RJ45 With Transformer , RJ45 Magnetic Jack Contact Resistance
100Base-T RJ45 With Transformer , RJ45 Magnetic Jack Contact Resistance
100Base-T RJ45 With Transformer , RJ45 Magnetic Jack Contact Resistance
Specifications
Brand Name :
CSCE
Model Number :
SC1001-003NL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
color :
black
Product Name :
RJ45 With Transformer
Contact Plating :
1'-50u'
Material :
PBT
Contact Resistance :
<30mΩ
Gender :
Female
Description

100Base-T Lan RJ45 With Transformer With EMI Shielded With Leds RJ45

Connector Transformer

Product Specification:

Specification: RJ45 With Transformer Cross Part NO: SC1001-003NL
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab down Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. LED Option Yellow/Green LEDs

Competitive Price And Service

• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available

Pre-sale service:

1. We try to do best communicate with every customer about all the questions and promptly

2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

Product application:

Products are widely used in radio, television, remote sensing toys, mobile communication, wireless Internet access, logistics express tracking services, etc..

FAQ

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 5-7 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer

2. Good quality, competitive price with best service.

3. Available for ODM/OEM order.

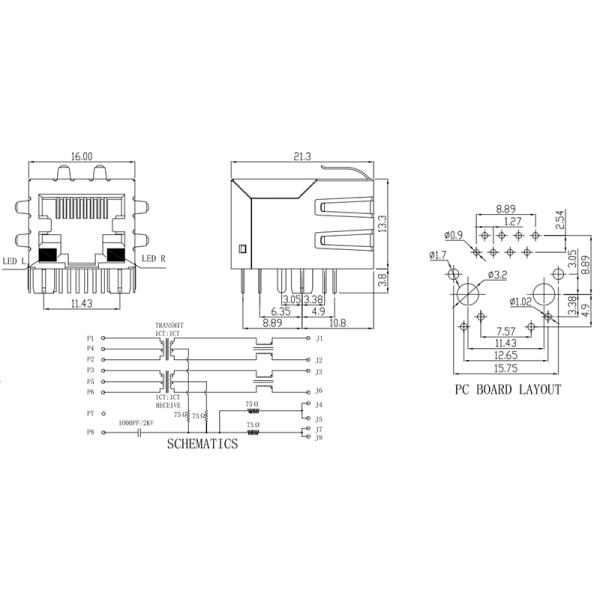

Product Drawing:

100Base-T RJ45 With Transformer , RJ45 Magnetic Jack Contact Resistance <30mΩ
