SHDM-6B2142-63 19Pin Socket HDMI male Connector gold plating Splint Type |
Quick Details:
Specification: | HDMI | Cross Part NO: | SHDM-6B2142-63 |
Mounting: | solder | Samples: | Available 2-3 Pcs |
plating: | gold | Files: | PDF/3D/ISG/Stp/Datasheet |
Product Specification:
Terminal | C5191 Gold Plated Wirhin Connect Area Tin Plated Within Solder Area |
Housing | LCP+30%GF UL94V-0,Colar is black |
Shell | SPCC /C2680 Plating Nickel or gold overall |
Insertion force | 44.1N ,AAX |
Withdrawal force | 9.8-39.2N |
Durability | 10000 Cycles |
Current rating | 0.5A |
Voltage rating | 40V AC MAX |
Dielectric strength | 500V AC(Unmated) 300V AC (Mated) |
Contact resistance | 30mΩ MAX |
Insulation resistance | 100mΩ DC (Unmated) 10mΩ DC (Mated) |
Temperature | -40℃-+85℃ |
Competitive Advantage:
CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.
• Active Environmental Policy
Competitive Advantage:
CSCE has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly ,100% test, 0 defect, short lead time are our best advantages.
What's the Price?
Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/Money Gram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.
CSCE Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• CSCE Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services.
About us
Established in Mar, 2005. Shenzhen CSCE Electronics Co,Ltd is a high-tech enterprise that specializes in the development design, production and sale of communication network connectors. The main products include RJ45, RJ11, RJ45+ TRANSFORMER, LAN-Transformer,USB, DC jack, HDMI,SFP ,PIN Header,Female Header,SATA,Antennas etc, The company acquired the ISO9001-2000 quality management system Certification, ISO14001 environmental management system and UL certification.
Our company have the factory in YueQing ,Shenzheng and JiangXi,with total plant area of 18,000㎡,and has over 500 employees.We have a strong R&D ability for new product, .equipment and manufacturing ability for mould. Meanwhile, advanced production equipment and quality testing equipment to make our products with reliable quality,competitive price, and in time delivery well-selling in both domestic and foreign markets,such as southeast Asia, Europe, America, Middle East etc. with our efforts, we built our own famous brand-CSCE and become world famous company's qualified suppliers,such as Hisense, Skyworth, T&W, HGTECH, JEZETEK, CIG, TwoWing, HUAWEI, TCL,FOXCONN ,TENDA ,PANASONIC ,NEC ,HUMAX and so on …
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: TT/LC/DP/DA/Paypal/Western Union/Money Gram

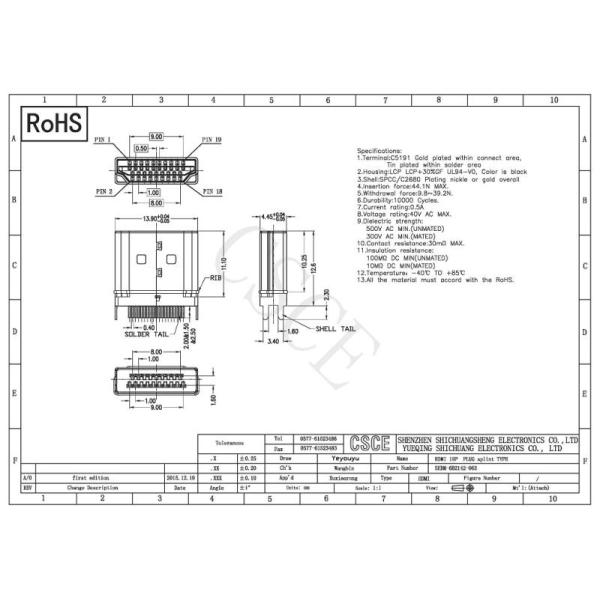

Product Drawing:
