Specifications
Brand Name :
CSCE
Model Number :
DC-005∅3.0
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Insertion force :
≤30N
Insulation resistance :
≥500mΩ
Rated Voltage :
50V AC
Contact resistance :
30mΩ Max
Rated Current :
3A
Name :
DC Power Jack Socket
Description
3A Socket Female Dc power jack Low Voltage Connectors Black Centre Pin Diameter 3.0mm

About us

Established in Mar, 2005. Shenzhen CSCE Electronics Co,Ltd is a high-tech enterprise that specializes in the development design, production and sale of communication network connectors. The main products include RJ45, RJ11, RJ45+ TRANSFORMER, LAN-Transformer,USB, DC jack, HDMI,SFP ,PIN Header,Female Header,SATA,Antennas etc, The company acquired the ISO9001-2000 quality management system Certification, ISO14001 environmental management system and UL certification.
Our company have the factory in YueQing ,Shenzheng and JiangXi,with total plant area of 18,000㎡,and has over 500 employees.We have a strong R&D ability for new product, .equipment and manufacturing ability for mould. Meanwhile, advanced production equipment and quality testing equipment to make our products with reliable quality,competitive price, and in time delivery well-selling in both domestic and foreign markets,such as southeast Asia, Europe, America, Middle East etc. with our efforts, we built our own famous brand-CSCE and become world famous company's qualified suppliers,such as Hisense, Skyworth, T&W, HGTECH, JEZETEK, CIG, TwoWing, HUAWEI, TCL,FOXCONN ,TENDA ,PANASONIC ,NEC ,HUMAX and so on …

Product Description:

Rated Current 3A
Rated Voltage 50V DC
Contact resistance ≤30mΩ
Insulation resistance ≥500mΩ
Voltage resistance 500V AC
Insertion force ≤30N
Operating temperature -40℃-+85℃
Wave soldering temperature 265±5℃,5s
Salt spray 12H

Our services

1. OEM, ODM are welcome.

You can use your own brand or ours. If you use our brand, our professional design team will help you design the packing.Our research team will research new formula according to your market.

2. Free sample will be provided.
Usually, we make free samples for you, while you afford shipping charge of samples. But when the sample need new mold, you will afford the mold charge. And after we make a deal, the sample fee will be returned to you.

3. Welcome to visit.
When you come to our company visit us, we will arrange car for picking up and help you book hotel. If you want to visit the local scenic spot, our colleague will accompany you.

4. After-service.
a. In production and after delivery, we will track on time and tell your goods situation.
b. When the goods arrived, if you find any design and quality question, or difference from your samples, please feel free to contact us, we will find the question and solve it with you.

Quick Details:

Specification: Low Voltage DC Power Connectors Cross Part NO: DC-005∅3.0
Rated Current: 3A Samples: Available 2-3 Pcs

FAQ

Q1: What is the Warranty for the goods?
A1: 1 year warranty.

Q2: Do you offer samples?
A2: Yes. However, buyer should responsibly for shipping cost.

Q3: Do you offer OEM service?
A3: Yes, Sure! Rich experience on printing logo on product and OEM package.

Q4: How many days I can get the goods after payment ?
A4: Usually, goods will be shipped within 3 days. By DHL will take about 3~5 days. So total will take about 4~8 days to arrive at your hands.

Q5: Could I get your Photos about the products without the watermark to my website?
A5: Of course, we could do this for you.

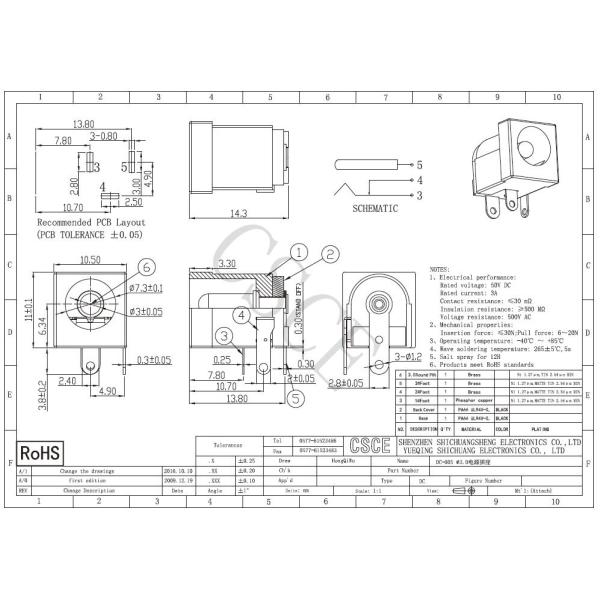

Product Drawing:

Insertion Force ≤30N DC Power Jack Socket , DC Female Socket Center Pin Diameter 3.0mm
